Sungrow

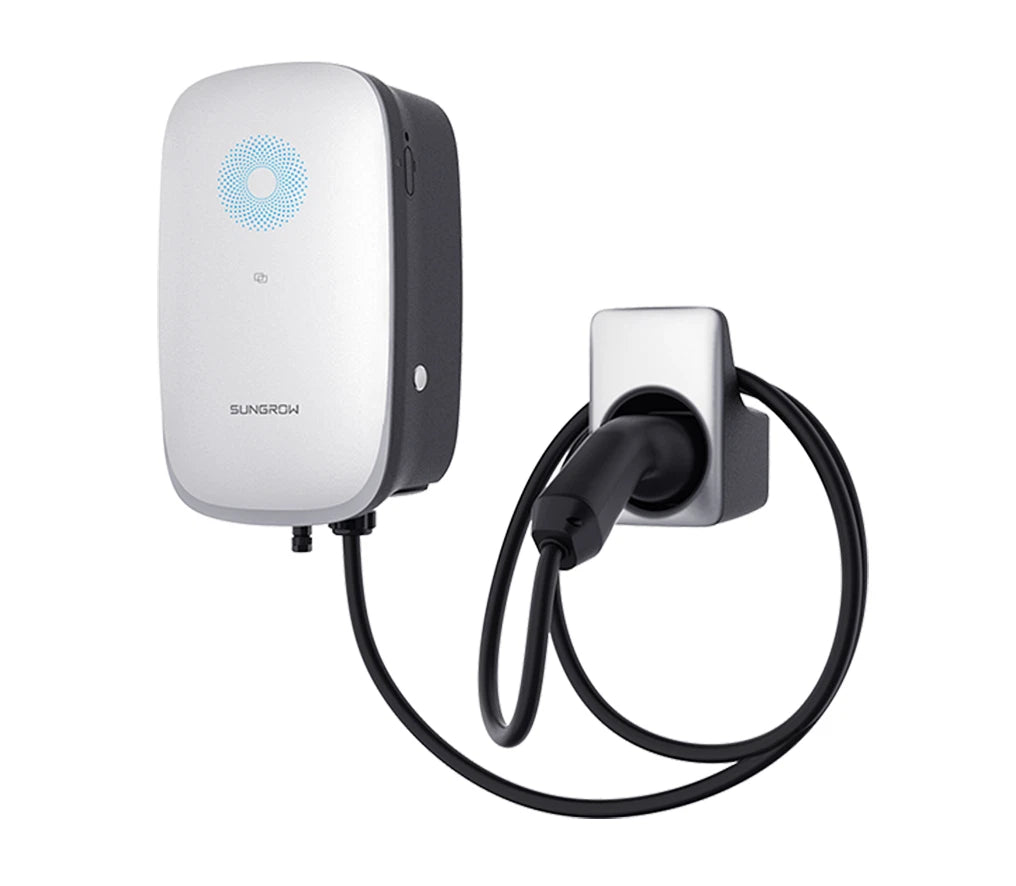

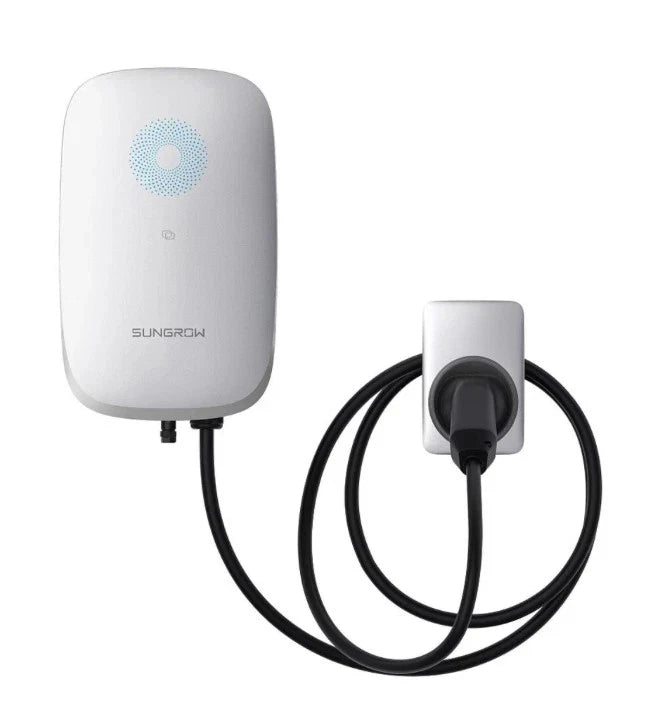

Sungrow EV Charger Type 2 AC Charger With 5m Cable IP65 AC22E-01

Sungrow EV Charger Type 2 AC Charger With 5m Cable IP65 AC22E-01

$956.00 AUD
$956.00 AUD
Sale Sold out

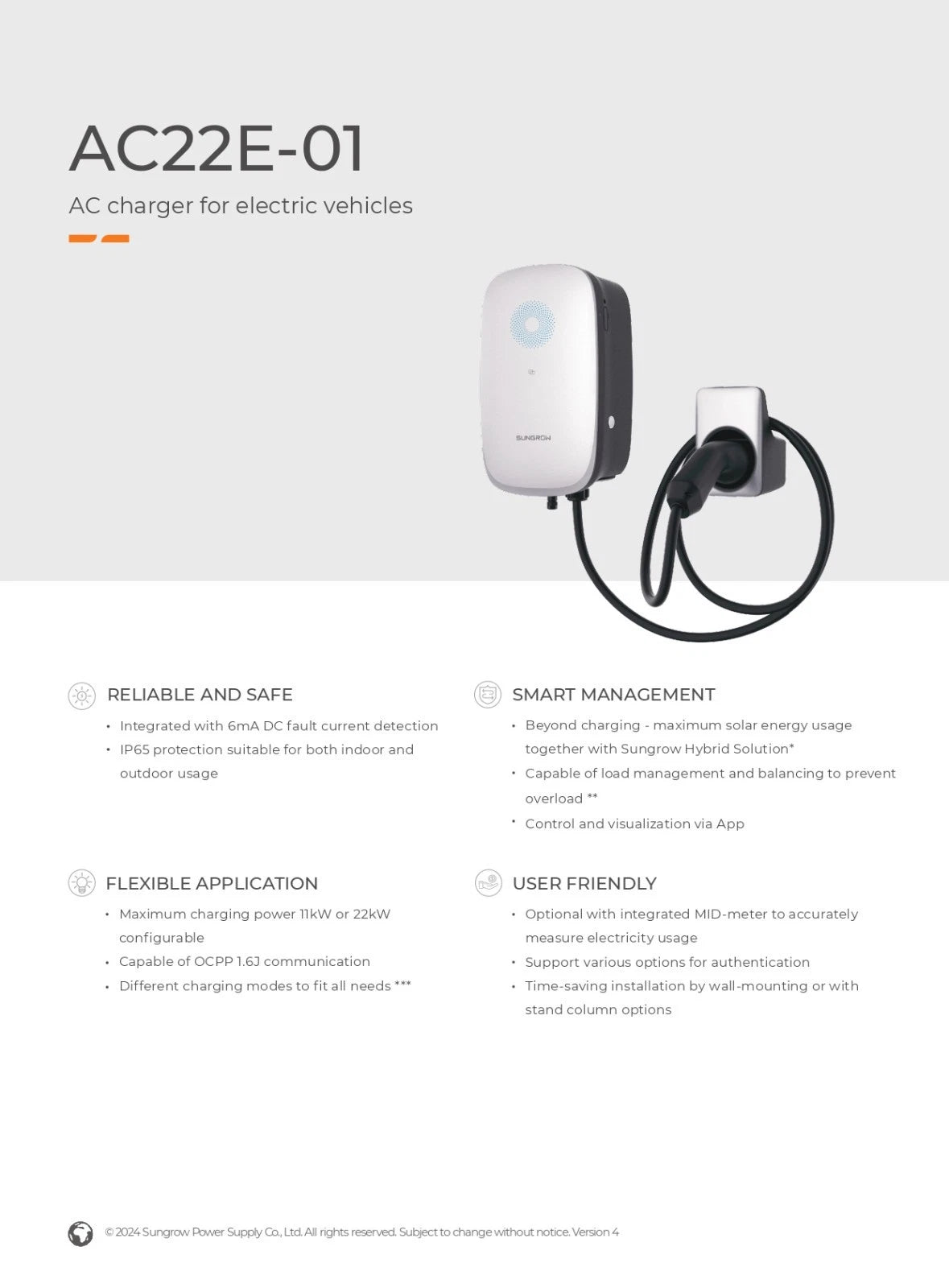

Sungrow AC Type2 EV Charger

Features:

  • Type 2 EV Charger
  • 11kW or 22kW, AC Charging
  • 5m Cable

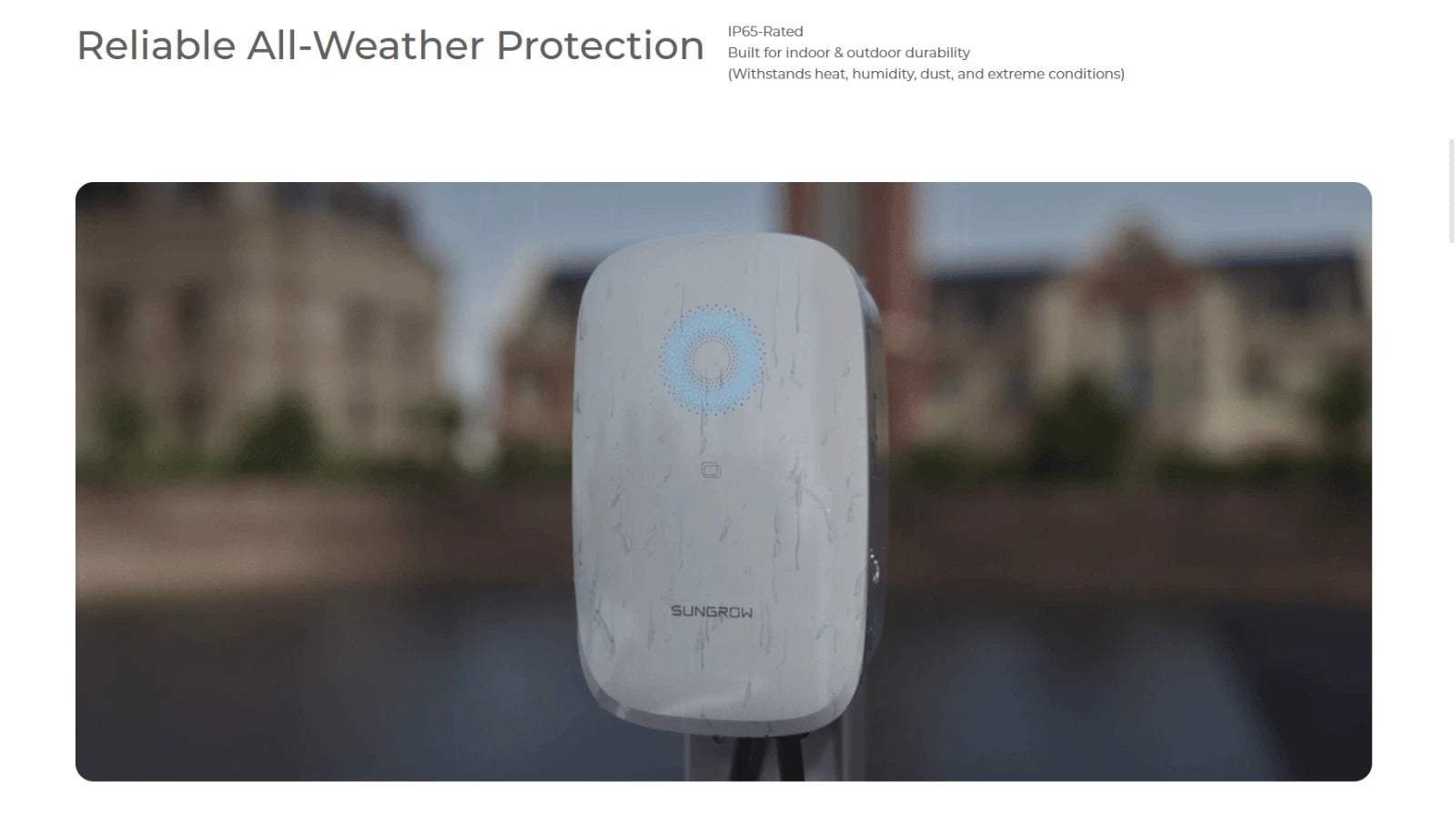

  • IP65 Rated for Indoor & Outdoor Use
  • Beyond Charging with Sungrow Hybrid Solution
  • Load Management & Balancing with Sungrow Smart Meter
  • Integrated DC Fault Current Detection
  • OCPP 1.6J Communication
  • Multiple Charging Modes with Sungrow Hybrid Solution

Sungrow's AC EV Charger is both reliable and versatile, and is compatible with Sungrow single-phase and three-phase solutions. It features a Type 2 charging plug and a 5-meter charging cable. The charger includes integrated 6mA DC fault detection for enhanced safety. It can be easily managed through the iSolarCloud portal and includes OCPP 1.6J communication capabilities.

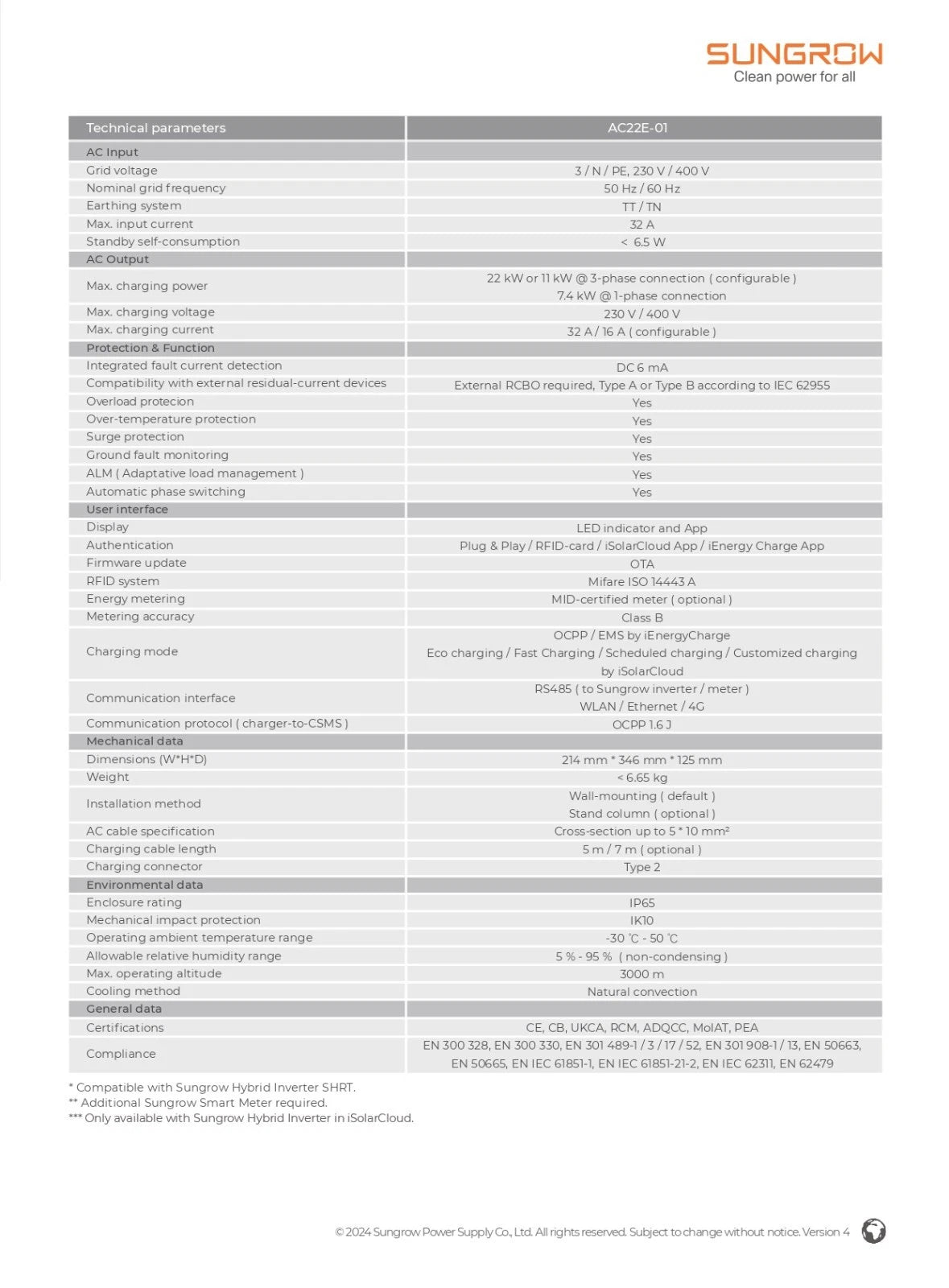

Product Specifications

Sungrow AC Type 2 EV Charger (AC22E-01)
AC Input & Output
Grid Voltage 3P/N/PE,  230 / 400V
Nominal Grid Frequency 50 / 60Hz
Earthing System TT / TN
Max. Input Current
 		32A
Standby Self-Consumption < 6.5W
AC Output
Max. Charging Power

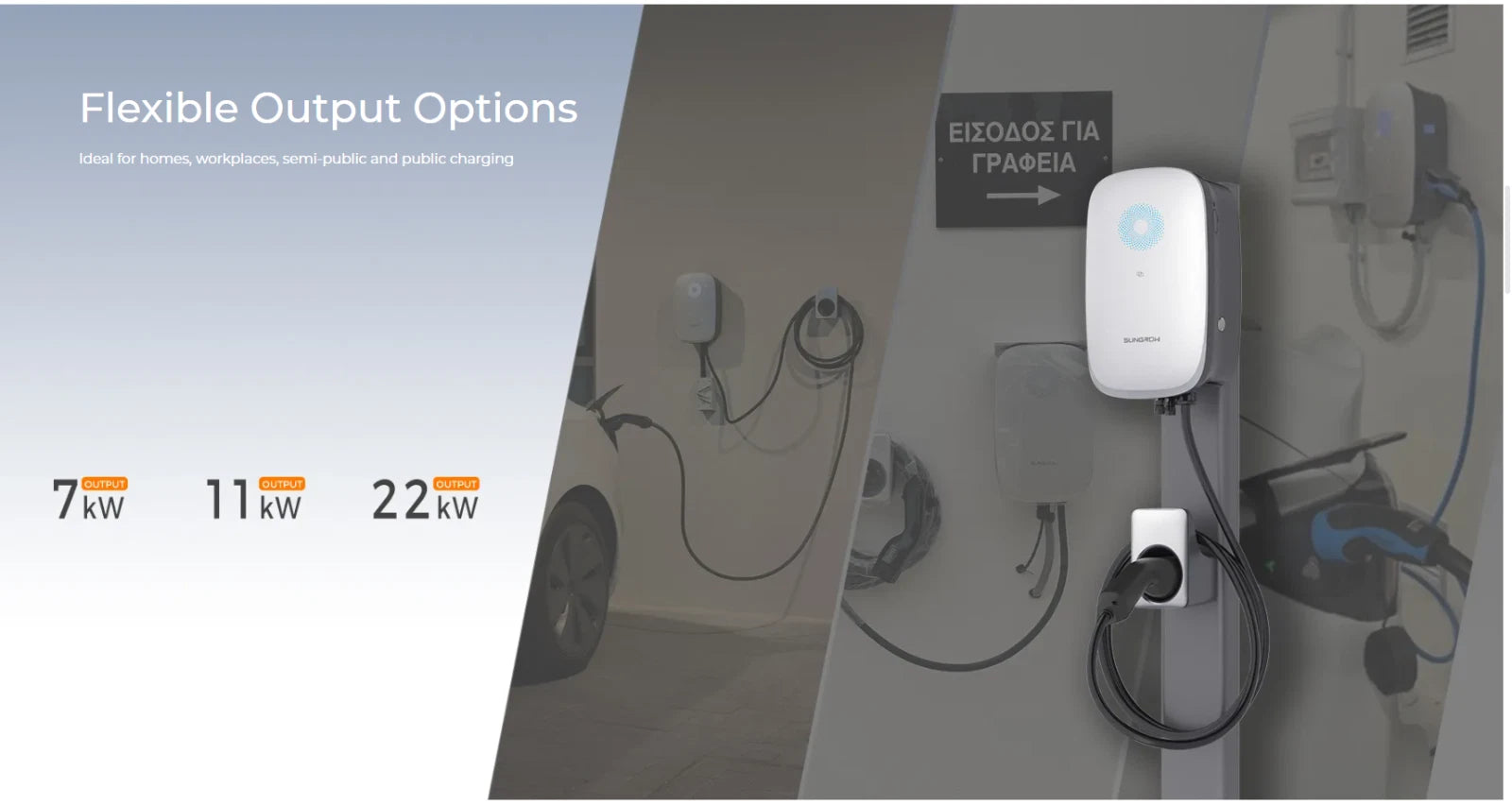

 		22kW or 11kW at 3-Phase Connection (configurable)   or   7.4kW at 1-Phase Connection
Max. Charging Voltage
 230 / 400V
Max. Charging Current
 32A / 16A (configurable)
Protection & Function
Integrated Fault Current Detection DC 6mA
Compatibility with External Residual-Current Devices External RCBO required, Type A or Type B according to IEC 62955
Overload Protection Yes
Overtemperature Protection Yes
Surge Protection Yes
Ground Fault Monitoring Yes
ALM (Adaptive Load Monitoring) Yes
Automatic Phase Switching Yes
User Interface
Display LED Indicator and App
Authentication
 		Plug & Play / RFID Card / iSolarCloud App / iEnergy Charge App
Firmware Update OTA
RFID System Mifare ISO 14443 A
Energy Metering MID-certified meter (optional)
Metering Accuracy Class B
Charging Mode OCPP / EMS by iEnergy Charge / Eco Charging / Fast Charging / Scheduled Charging / Customised Charging by iSolarCloud
Communication Interface RS485 (to Sungrow Inverter) / WLAN / Ethernet / 4G
Communication Protocol OCPP 1.6J
Mechanical Data
Dimensions 214 x 346 x 125mm
Weight < 6.65kg

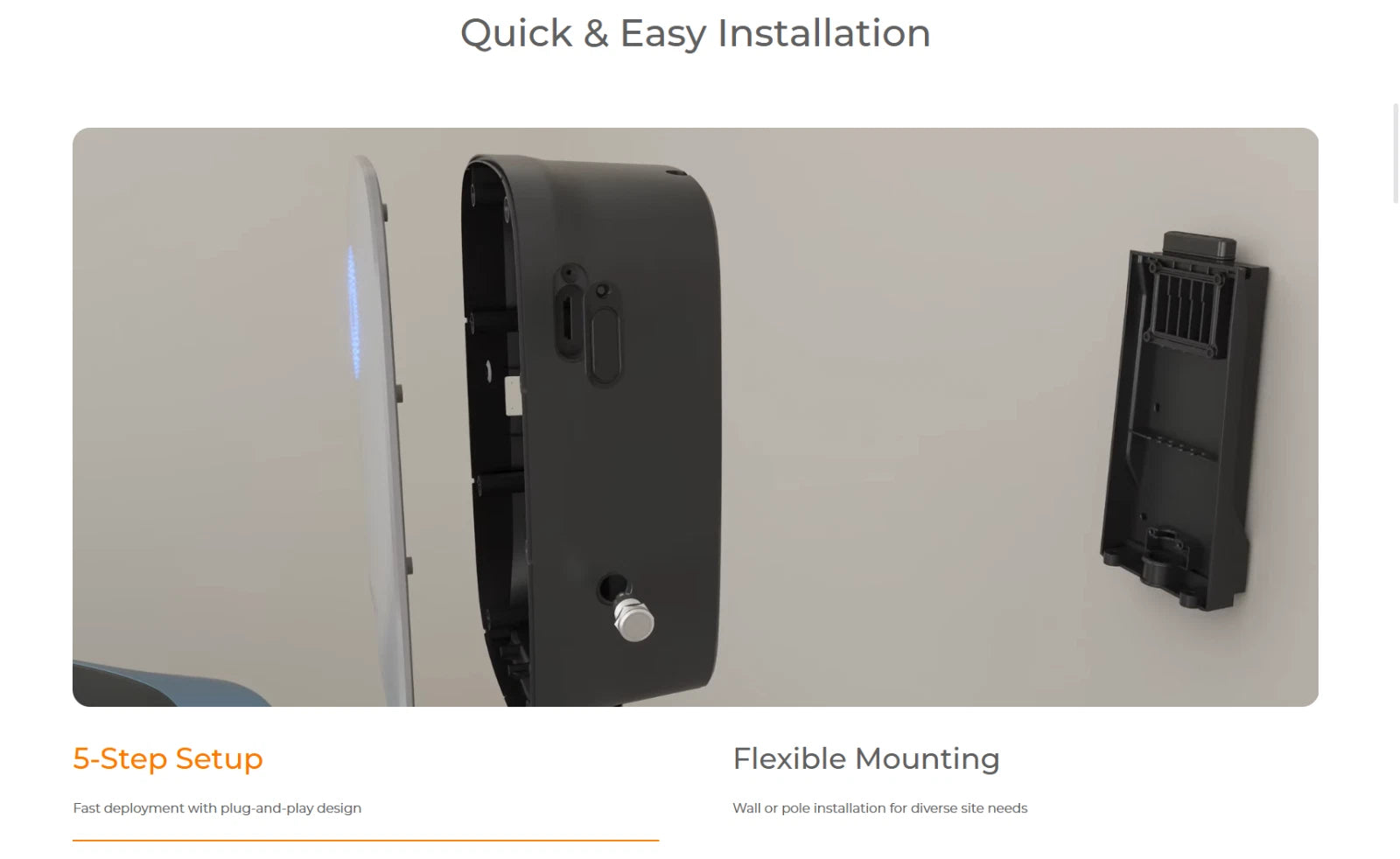

Installation Method Wall-Mounting (default)  or  Stand Column (optional)
AC Cable Specification Cross-section up to 5 * 10mm²
Charging Cable Length 5m / 7m (optional)
Charging Connector Type  2
Environmental Data
Enclosure Rating IP65
Mechanical Impact Protection IK10
Operating Ambient Temperature Range -30 ~ +50°C
Allowable Relative Humidity Range 5% ~ 95% (non-condensing)
Max. Operating Altitude 3000m
Cooling Method Natural Convection
General Data
Certifications CE, CB, UKCA, RCM, ADQCC, MoIAT, PEA
Compliance EN 300 328, EN 300 330, EN 301 489-1 / 3 / 17 / 5 2, EN 301 908-1 / 13, EN 50663, EN 50665,
EN IEC 61851-1, EN IEC 61851-21-2, EN IEC 62311, EN 62479
