Growatt Hybrid Inverter SPE 12000 ES On Off Grid Single Phase Dual Mppt

This is a multifunctional PV Hybrid inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WIFI / 4G module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

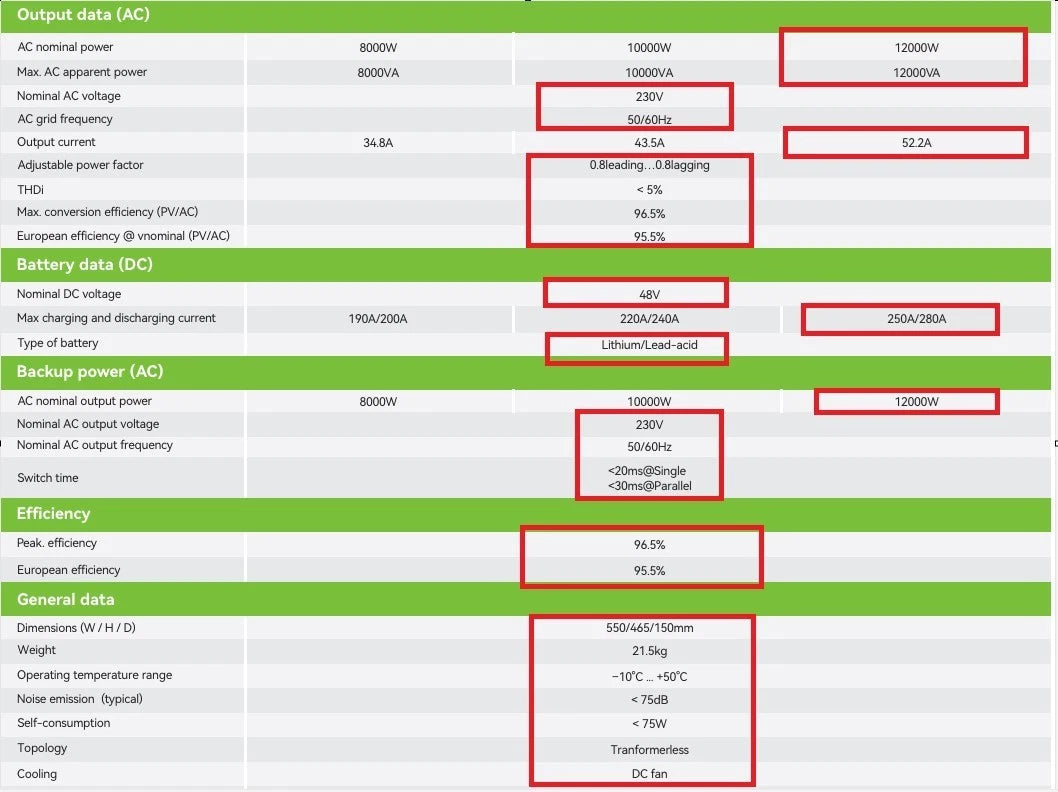

►  Rated power 8KW to 12KW, power factor 1.

►  2 strings of MPPT, Max. PV array power 10000watt to 15000watt.

►  MPPT Voltage range 60Vdc-480Vdc, 550Voc.

►  Pure sine wave inverter and MPPT solar charge controller integrated inside.

►  Built-in ATS for automatic grid and generator switching.

►  Able to work with or without battery.

►  With CAN/RS485 for BMS communication.

►  WIFI/4G wireless monitoring(optional).

►  Parallel operation up to 9 unit( only with battery connected).

►  With grid tied function.

►  With dual outputs.

►  With grid peak shaving.

►  With external CT for zero exporting into grid.
