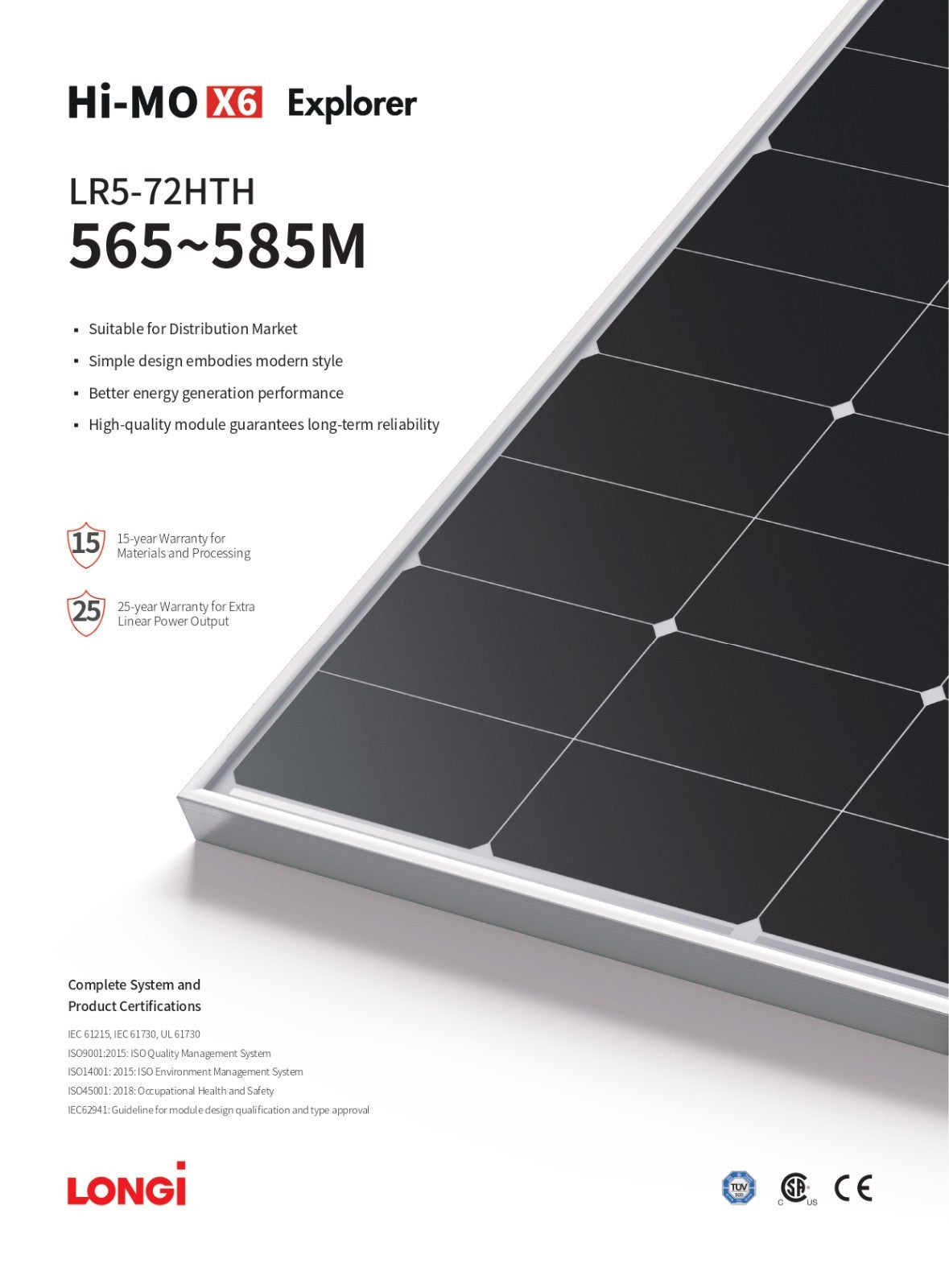

LONGI HiMO 6 Explorer 585W 144 cells Solar Panel - LR5-72HTH-585M

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 12 Years Product Warranty / 25 Years Performance Warranty

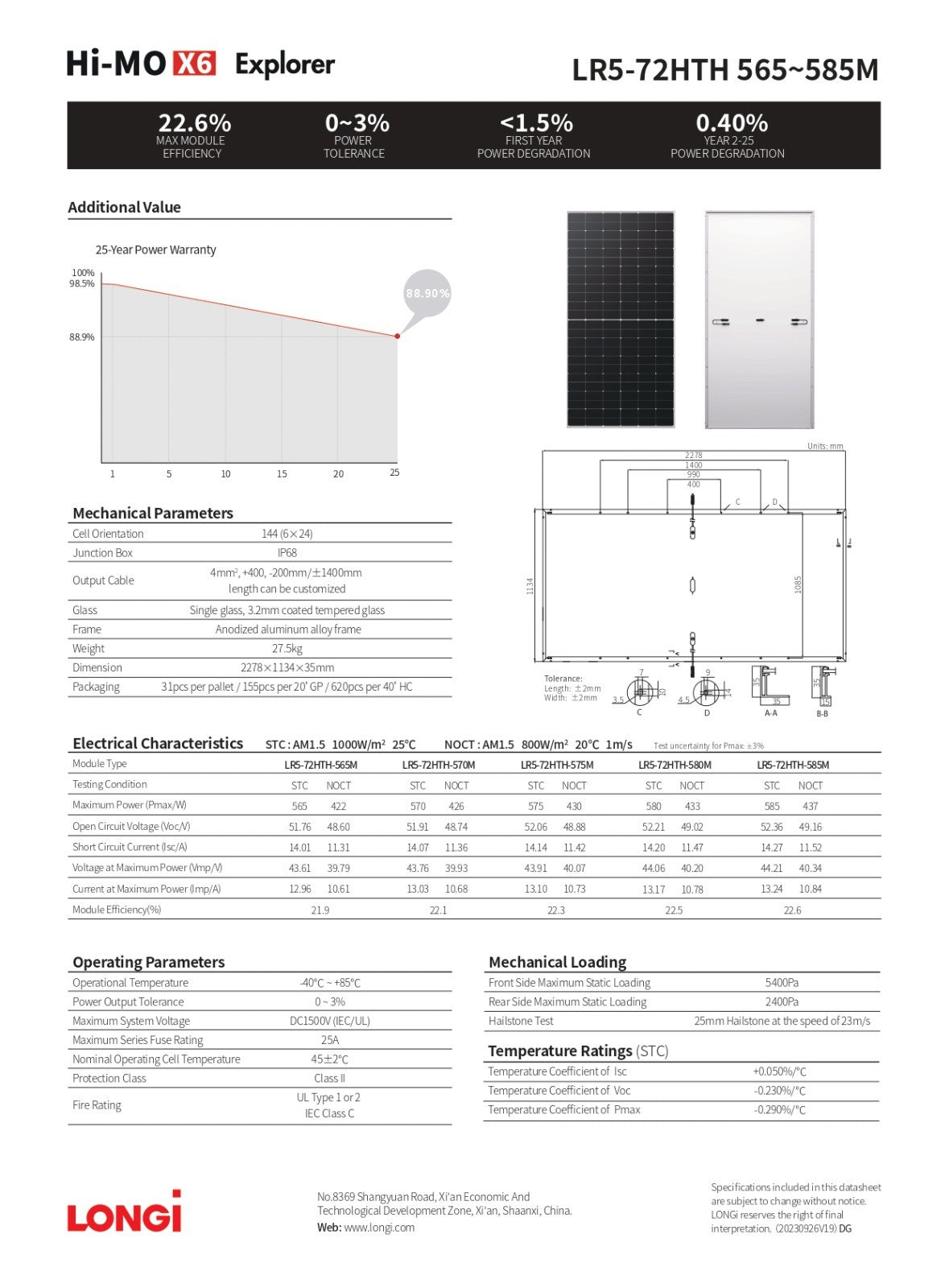

Product Characteristics

Type Monocrystalline Model No. LR5-72HTH 565M LR5-72HTH 570M LR5-72HTH 575M LR5-72HTH 580M LR5-72HTH-585M Warranty   Product Warranty 15 Years Power Warranty 25 Years of 88.9% Output Power Electrical Data at STC   Maximum Power (Pmax) 565 Wp 570 Wp 575 Wp 580 Wp 585 Wp Voltage at Maximum Power (Vmpp) 43.61 V 43.76 V 43.91 V 44.06 V 44.21 V Current at Maximum Power (Impp) 12.96 A 13.03 A 13.1 A 13.17 A 13.24 A Open Circuit Voltage (Voc) 51.76 V 51.91 V 52.06 V 52.21 V 52.36 V Short Circuit Current (Isc) 14.01 A 14.07 A 14.14 A 14.2 A 14.27 A Panel Efficiency 21.9 % 22.1 % 22.3 % 22.5 % 22.6 % Power Tolerance (Positive) + 3 % + 3 % + 3 % + 3 % + 3 %   Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C Electrical Data at NOCT   Maximum Power (Pmax) 422 Wp 426 Wp 430 Wp 433 Wp 437 Wp Voltage at Maximum Power (Vmpp) 39.79 V 39.93 V 40.07 V 40.2 V 40.34 V Current at Maximum Power (Impp) 10.61 A 10.67 A 10.72 A 10.78 A 10.84 A Open Circuit Voltage (Voc) 48.6 V 48.74 V 48.88 V 49.02 V 49.16 V Short Circuit Current (Isc) 11.31 A 11.36 A 11.42 A 11.47 A 11.52 A Temperature 45±2 °C   Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C Thermal Ratings   Operating Temperature Range -40~85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum Ratings   Maximum System Voltage 1500 V Series Fuse Rating 25 A Material Data   Panel Dimension (H/W/D)  2278x1134x30 mm Weight 27.2 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 400 mm
