Longi Solar

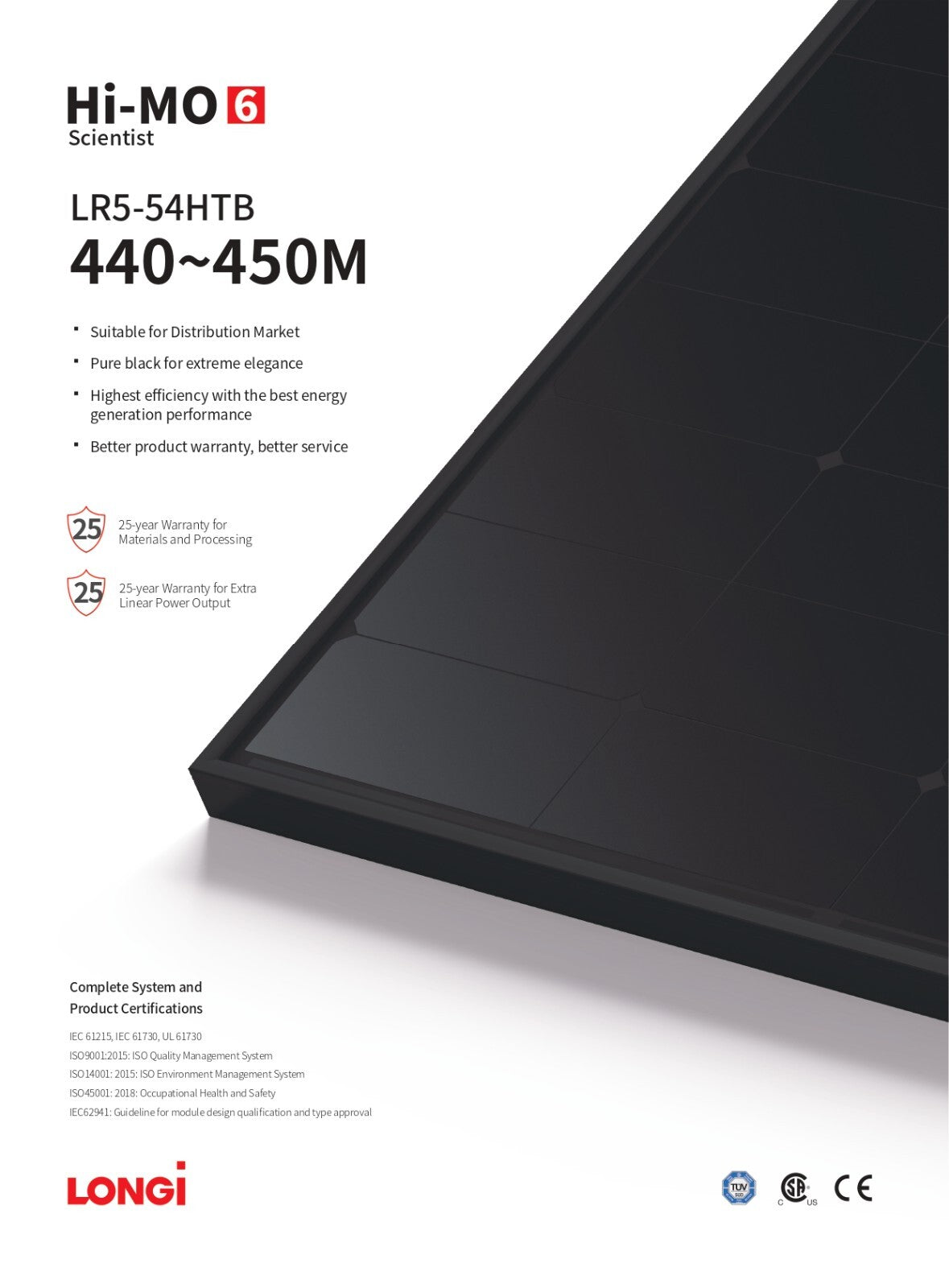

LONGI HiMO 6 Scientist 440W 108 Cells Solar Panel - LR5-54HTB-440M

LONGI HiMO 6 Scientist 440W 108 Cells Solar Panel - LR5-54HTB-440M

$171.00 AUD
$182.00 AUD $171.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 25 Years Product Warranty / 25 Years Performance Warranty

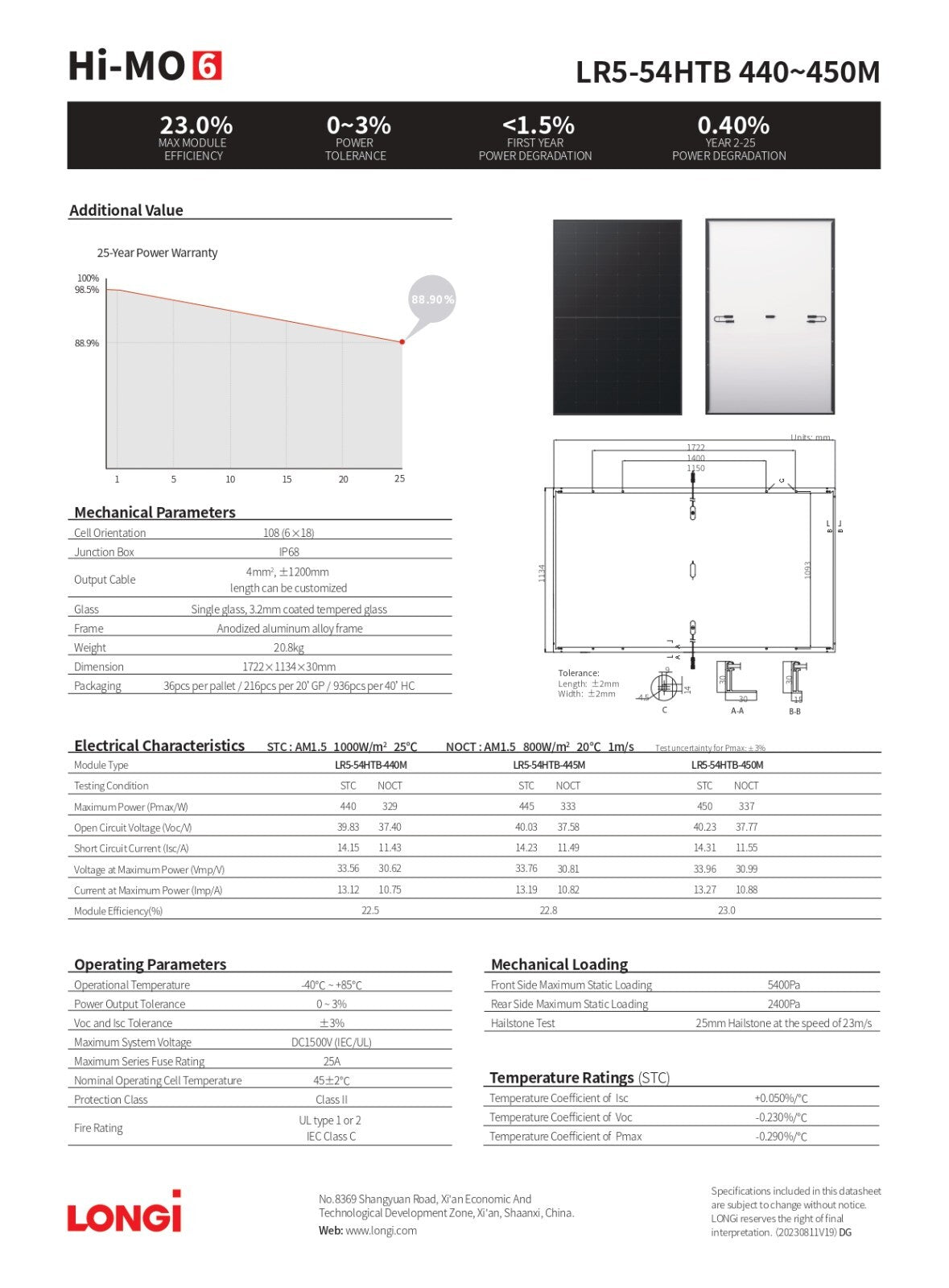

Product Characteristics

Type Monocrystalline
Model No.
LR5-54HTB-440M LR5-54HTB-445M LR5-54HTB-450M
Warranty
Product Warranty 25 Years
Power Warranty 25 Years of 88.9% Output Power
Electrical Data at STC
Maximum Power (Pmax)
440 Wp 445 Wp 450 Wp
Voltage at Maximum Power (Vmpp)
33.56 V 33.76 V 33.96 V
Current at Maximum Power (Impp)
13.12 A 13.19 A 13.27 A
Open Circuit Voltage (Voc)
39.83 V 40.03 V 40.23 V
Short Circuit Current (Isc)
14.15 A 14.23 A 14.31 A
Panel Efficiency
22.5 % 22.8 % 23 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
329 Wp 333 Wp 337 Wp
Voltage at Maximum Power (Vmpp)
30.62 V 30.81 V 30.99 V
Current at Maximum Power (Impp)
10.75 A 10.82 A 10.88 A
Open Circuit Voltage (Voc)
37.4 V 37.58 V 37.77 V
Short Circuit Current (Isc)
11.43 A 11.49 A 11.55 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.29 %/°C
Temperature Coefficient of Voc -0.23 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D)  1722x1134x30 mm
Weight 20.8 kg
Cell Number 108
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium, Black
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 1200 mm
