Longi Solar

LONGI HiMO 7 Bifacial 615W 144 Cells Solar Panel - LR7-72HGD-615M

Name: LONGI HiMO 7 Bifacial 615W 144 Cells Solar Panel - LR7-72HGD-615M
Brand: Longi Solar
SKU: LR7-72HGD-615M
Price: 233.0 AUD
Availability: InStock

$233.00 AUD

~~$249.00 AUD~~ $233.00 AUD

Sale Sold out

Product variants

Quantity

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 12 Years Product Warranty / 30 Years Performance Warranty

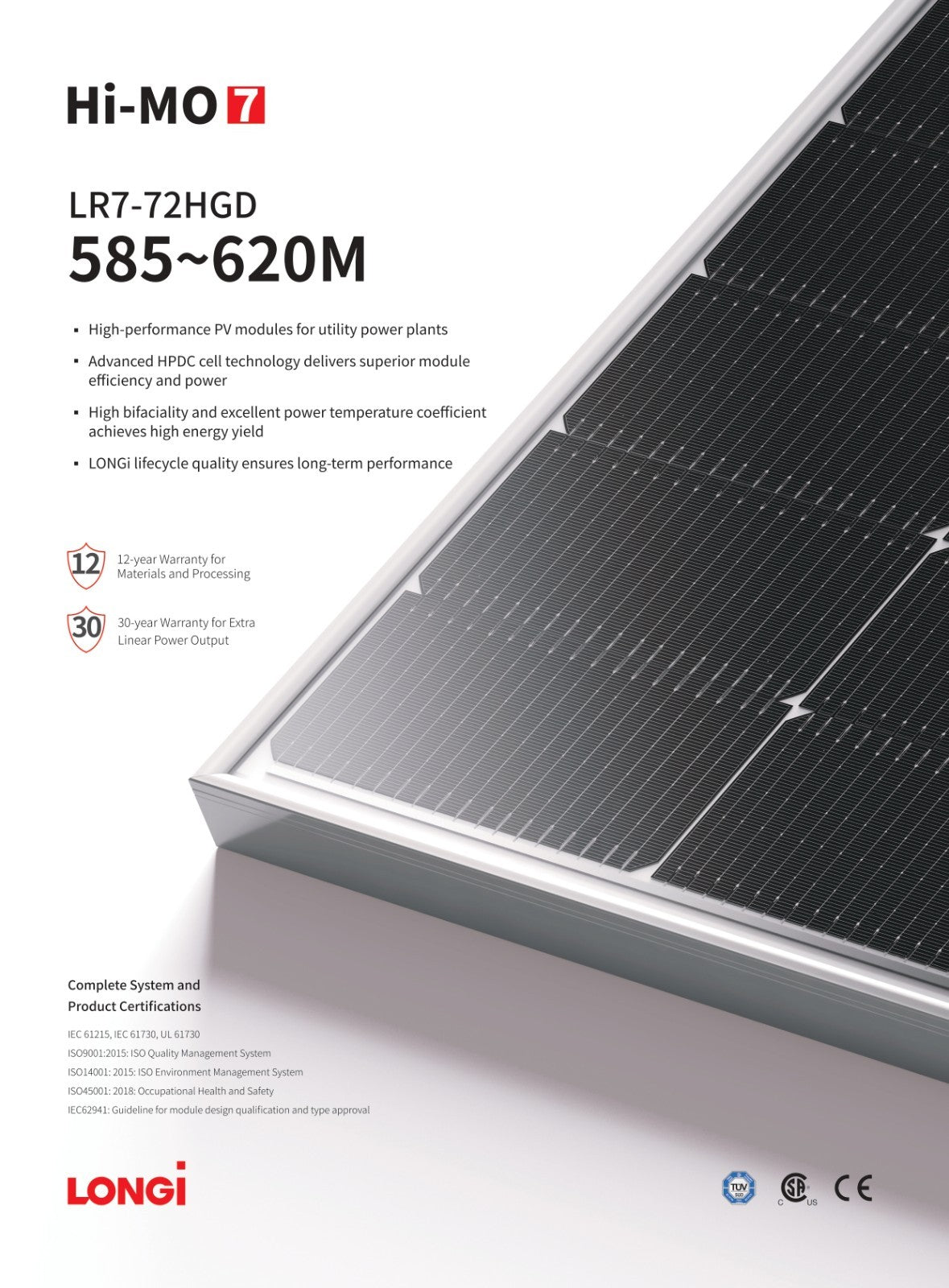

High-performance PV modules for utility power plants
Advanced HPDC cell technology delivers superior module efficiency and power
High bifaciality and excellent power temperature coefficient achieves high energy yield
LONGi lifecycle quality ensures long-term performance

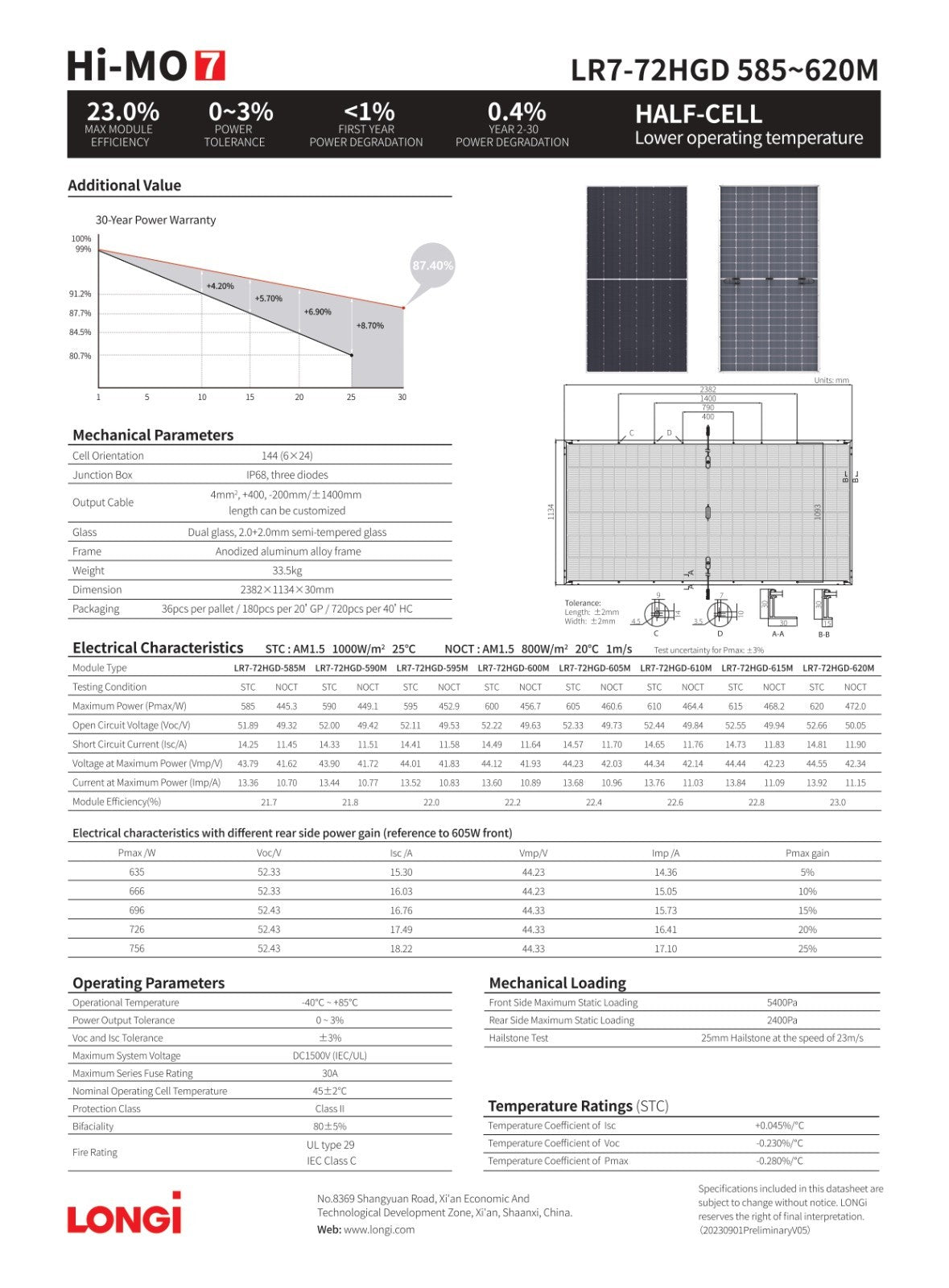

Product Characteristics

Type

Monocrystalline

Model No.

LR7-72HGD-585M

LR7-72HGD-590M

LR7-72HGD-595M

LR7-72HGD-600M

LR7-72HGD-605M

LR7-72HGD-610M

LR7-72HGD-615M

LR7-72HGD-620M

Product Warranty

12 Years

Power Warranty

15 Years of 93.4 %, 30 Years of 87.4 %

0.42 %

Power Tolerance

0 ~ +3 %

Electrical Data at STC

Maximum Power (Pmax)

585 Wp

590 Wp

595 Wp

600 Wp

605 Wp

610 Wp

615 Wp

620 Wp

Voltage at Maximum Power (Vmpp)

43.57 V

43.68 V

43.79 V

43.9 V

44 V

44.11 V

44.22 V

44.33 V

Current at Maximum Power (Impp)

13.43 A

13.51 A

13.59 A

13.67 A

13.75 A

13.83 A

13.91 A

13.99 A

Open Circuit Voltage (Voc)

52.01 V

52.12 V

52.23 V

52.34 V

52.44 V

52.55 V

52.66 V

52.77 V

Short Circuit Current (Isc)

14.29 A

14.37 A

14.45 A

14.53 A

14.61 A

14.69 A

14.77 A

14.85 A

Panel Efficiency

21.7 %

21.8 %

22 %

22.2 %

22.4 %

22.6 %

22.8 %

23 %

Electrical Data at NOCT

Maximum Power (Pmax)

445.3 Wp

449.1 Wp

452.9 Wp

456.7 Wp

460.6 Wp

464.4 Wp

468.2 Wp

472 Wp

Voltage at Maximum Power (Vmpp)

41.41 V

41.51 V

41.63 V

41.72 V

41.82 V

41.92 V

42.03 V

42.13 V

Current at Maximum Power (Impp)

10.76 A

10.82 A

10.88 A

10.95 A

11.02 A

11.08 A

11.14 A

11.21 A

Open Circuit Voltage (Voc)

49.43 V

49.53 V

49.64 V

49.74 V

49.84 V

49.94 V

50.04 V

50.15 V

Short Circuit Current (Isc)

11.48 A

11.54 A

11.61 A

11.67 A

11.74 A

11.8 A

11.86 A

11.92 A

Temperature

45Â±2 Â°C

Operating Temperature Range

-40 - 85 Â°C

Temperature Coefficient of Pmax

-0.28 %/Â°C

Temperature Coefficient of Voc

-0.23 %/Â°C

Temperature Coefficient of Isc

0.045 %/Â°C

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Panel Dimension (H/W/D)

2382x1134x30 mm

Weight

33.5 kg

Cell Number

144

Glass Thickness

2 mm

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Cable Crossection

4 mm2

Materials
