Longi Solar

LONGI HiMO 7 Dual Glass 620W 132 Cells Solar Panel - LR8-66HGD-620M

LONGI HiMO 7 Dual Glass 620W 132 Cells Solar Panel - LR8-66HGD-620M

$245.00 AUD
$261.00 AUD $245.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 12 Years Product Warranty / 30 Years Performance Warranty

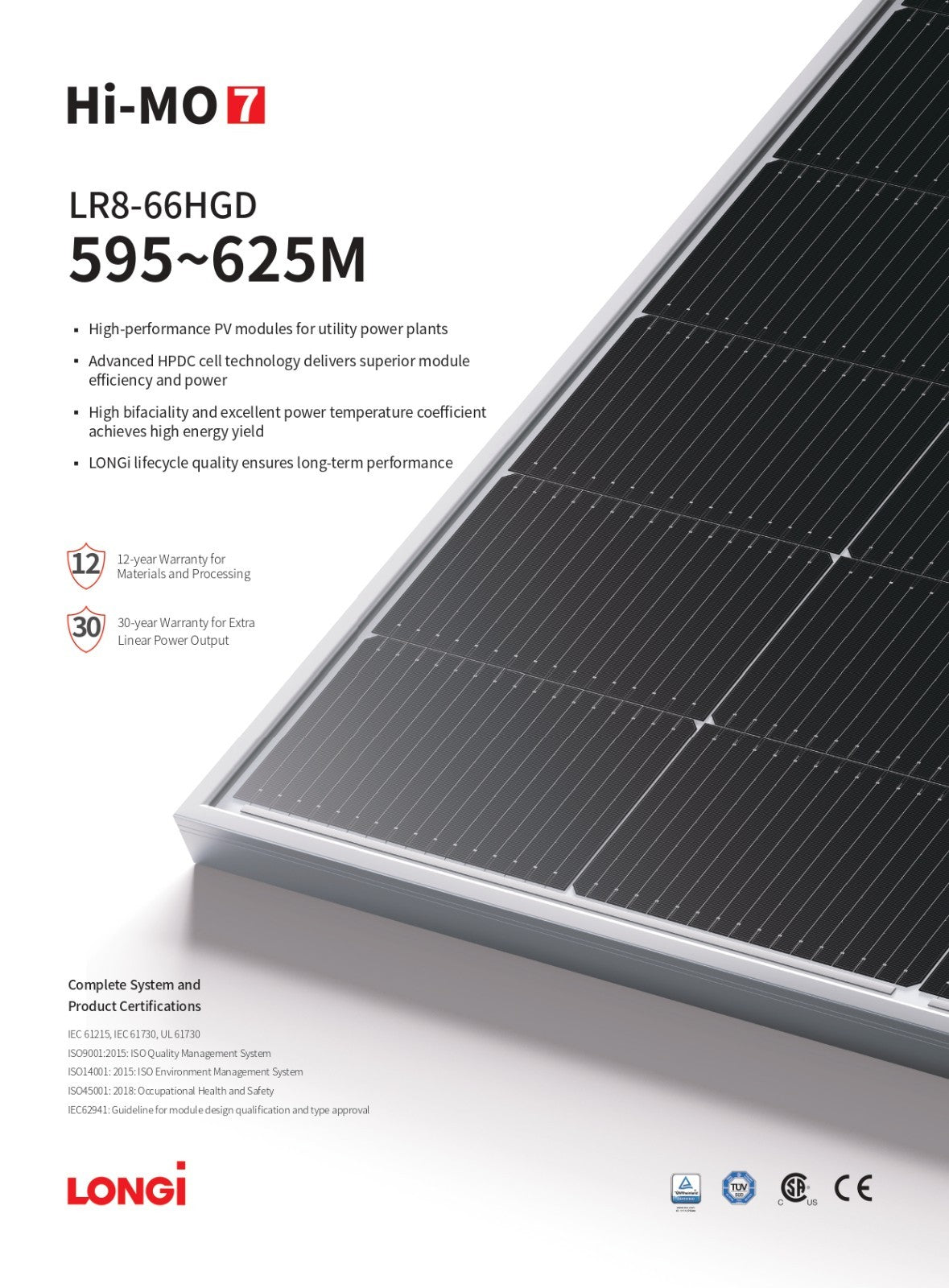

  • High-performance PV modules for utility power plants
  • Advanced HPDC cell technology delivers superior module efficiency and power
  • High bifaciality and excellent power temperature coefficient achieves high energy yield
  • LONGi lifecycle quality ensures long-term performance

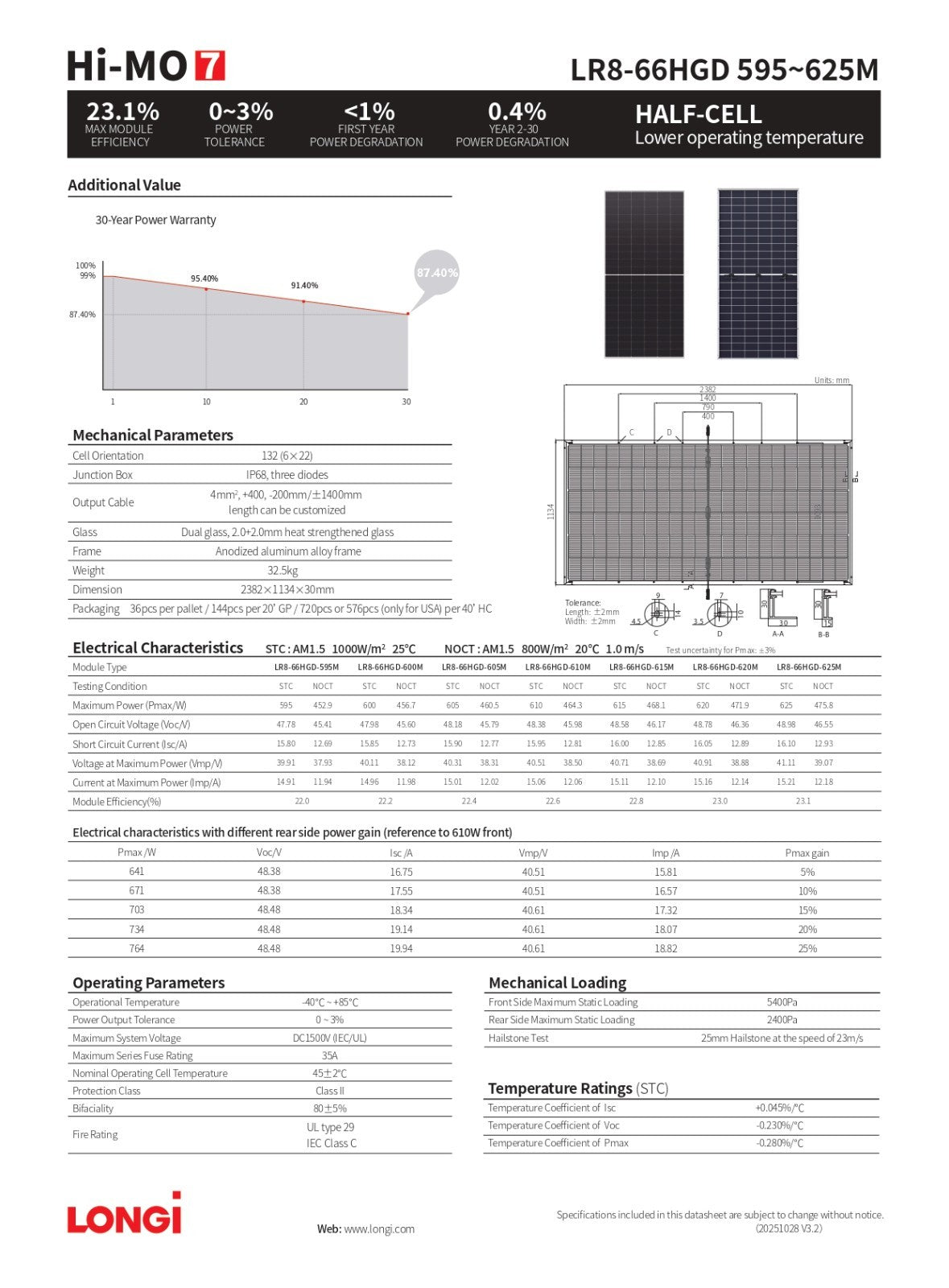

Product Characteristics

Type Monocrystalline
Model No.
LR8-66HGD-595M LR8-66HGD-600M LR8-66HGD-605M LR8-66HGD-610M LR8-66HGD-615M LR8-66HGD-620M LR8-66HGD-625M

Product Warranty 12 Years
Power Warranty 1 Years of 99 %, 30 Years of 87.4 %
0.42 %
Power Tolerance  0 ~ +3 %
Electrical Data at STC
Maximum Power (Pmax)
595 Wp 600 Wp 605 Wp 610 Wp 615 Wp 620 Wp 625 Wp
Voltage at Maximum Power (Vmpp)
39.91 V 40.11 V 40.31 V 40.51 V 40.71 V 40.91 V 41.11 V
Current at Maximum Power (Impp)
14.91 A 14.96 A 15.01 A 15.06 A 15.11 A 15.16 A 15.21 A
Open Circuit Voltage (Voc)
47.78 V 47.98 V 48.18 V 48.38 V 48.58 V 48.78 V 48.98 V
Short Circuit Current (Isc)
15.8 A 15.85 A 15.9 A 15.95 A 16 A 16.05 A 16.1 A
Panel Efficiency
22 % 22.2 % 22.4 % 22.6 % 22.8 % 23 % 23.1 %
Electrical Data at NOCT
Maximum Power (Pmax)
452.9 Wp 456.7 Wp 460.5 Wp 464.3 Wp 468.1 Wp 471.9 Wp 475.8 Wp
Voltage at Maximum Power (Vmpp)
37.93 V 38.12 V 38.31 V 38.5 V 38.69 V 38.88 V 39.07 V
Current at Maximum Power (Impp)
11.94 A 11.98 A 12.02 A 12.06 A 12.1 A 12.14 A 12.18 A
Open Circuit Voltage (Voc)
45.41 V 45.6 V 45.79 V 45.98 V 46.17 V 46.36 V 46.55 V
Short Circuit Current (Isc)
12.69 A 12.73 A 12.77 A 12.81 A 12.85 A 12.89 A 12.93 A
Temperature 45±2 °C

Operating Temperature Range -40 - 85 °C
Temperature Coefficient of Pmax -0.28 %/°C
Temperature Coefficient of Voc -0.23 %/°C
Temperature Coefficient of Isc 0.045 %/°C

Maximum System Voltage 1500 V
Series Fuse Rating 35 A

Panel Dimension (H/W/D)  2382x1134x30 mm
Weight 32.5 kg
Cell Number 132
Glass Thickness 2 mm
Frame Type Anodized Aluminium
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 400 mm
