Longi Solar

LONGI HiMO X10 Explorer 650W 144 Cells Solar Panel - LR7-72HVH-650M

LONGI HiMO X10 Explorer 650W 144 Cells Solar Panel - LR7-72HVH-650M

$262.00 AUD
$280.00 AUD $262.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 15 Years Product Warranty / 30 Years Performance Warranty

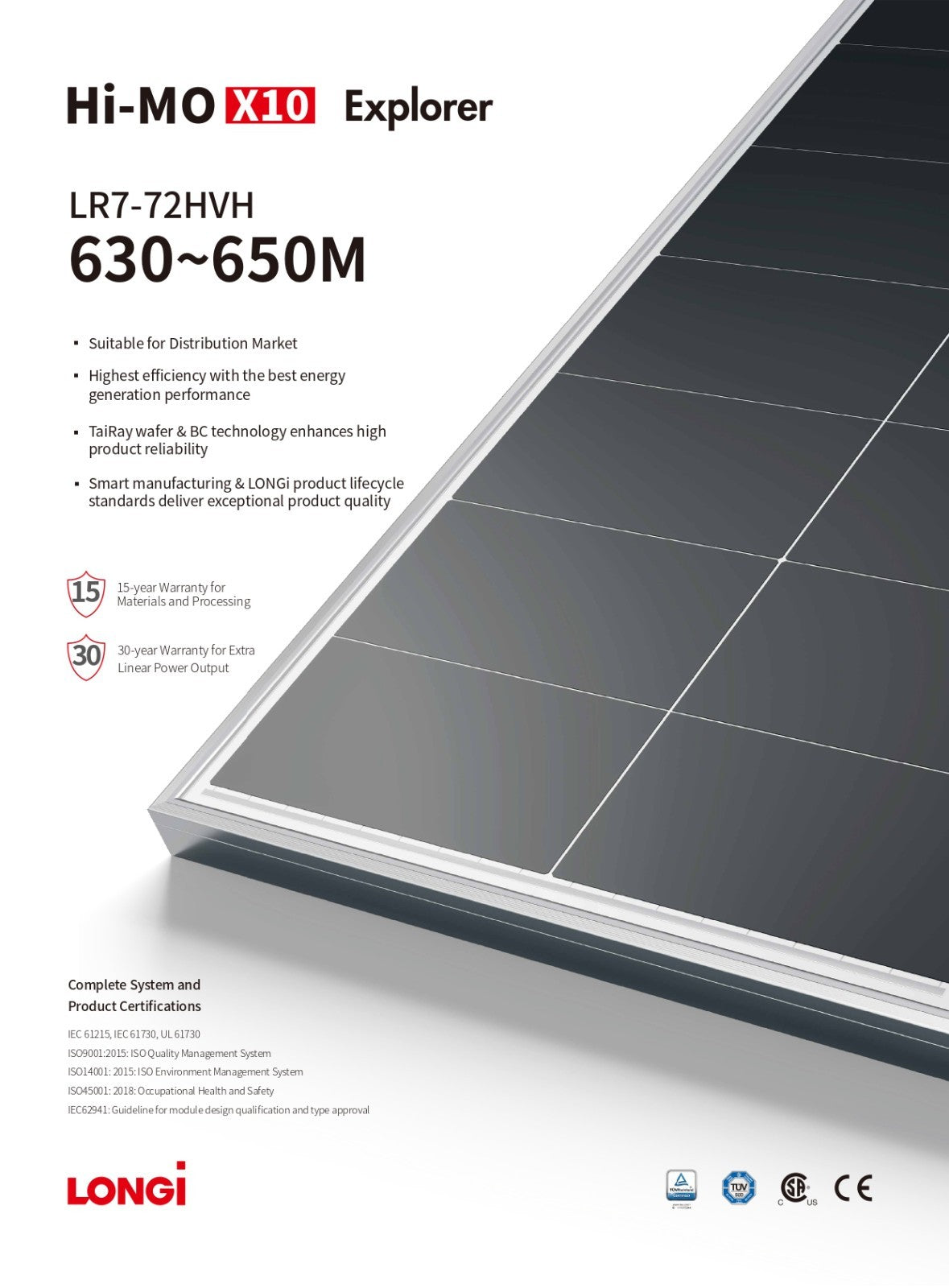

  • Suitable for Distribution Market
  • Highest efficiency with the best energy generation performance
  • TaiRay wafer & BC technology enhances high product reliability
  • Smart manufacturing & LONGi product lifecycle standards deliver exceptional product quality

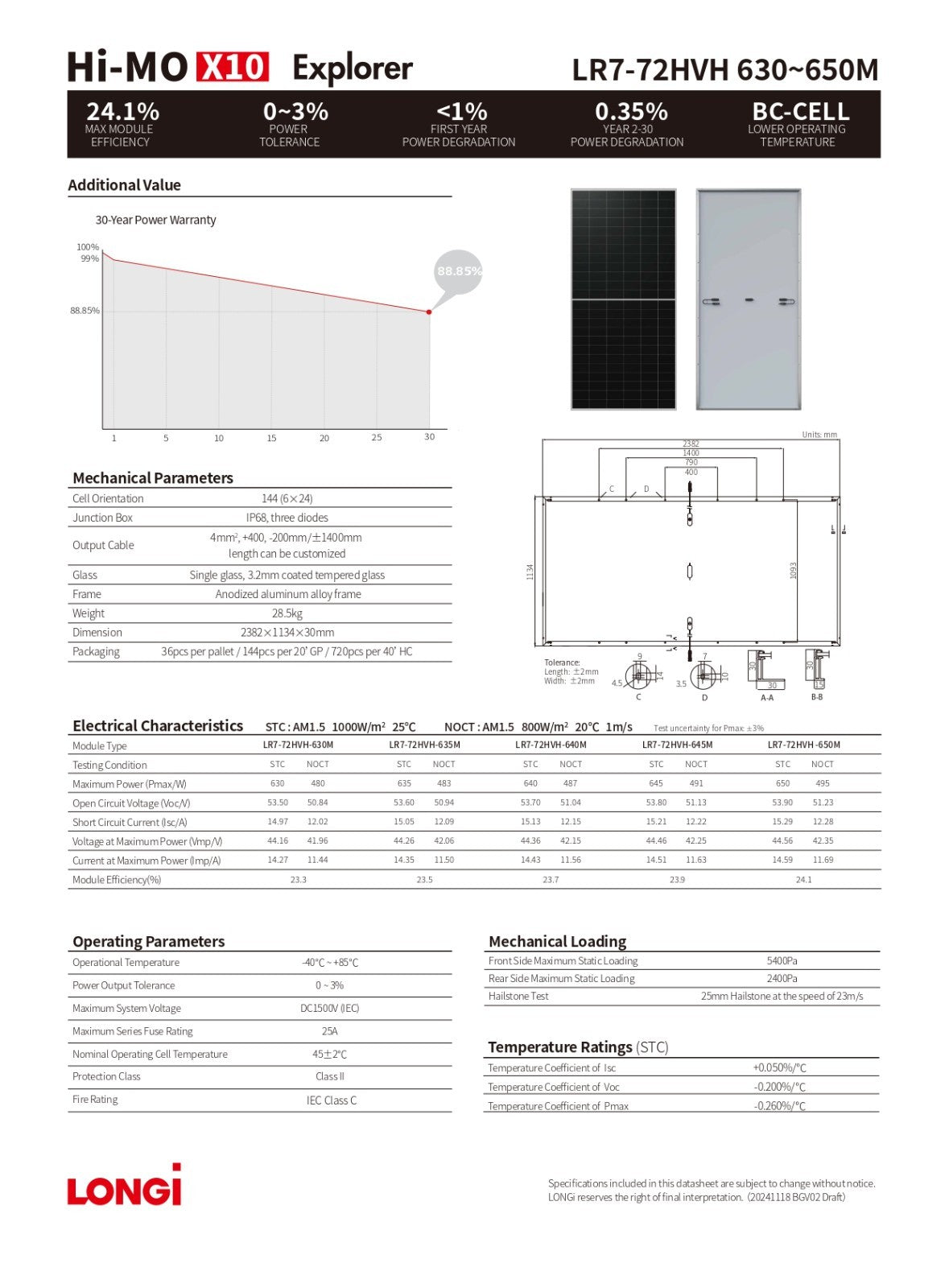

Product Characteristics

Type Monocrystalline
Model No.
LR7-72HVH-630M LR7-72HVH-635M LR7-72HVH-640M LR7-72HVH-645M LR7-72HVH-650M

Product Warranty 15 Years
Power Warranty 30 Years of 88.85 %
0.37 %
Power Tolerance  0 ~ +3 %
Electrical Data at STC
Maximum Power (Pmax)
630 Wp 635 Wp 640 Wp 645 Wp 650 Wp
Voltage at Maximum Power (Vmpp)
44.16 V 44.26 V 44.36 V 44.46 V 44.56 V
Current at Maximum Power (Impp)
14.27 A 14.35 A 14.43 A 14.51 A 14.59 A
Open Circuit Voltage (Voc)
53.5 V 53.6 V 53.7 V 53.8 V 53.9 V
Short Circuit Current (Isc)
14.97 A 15.05 A 15.13 A 15.21 A 15.29 A
Panel Efficiency
23.3 % 23.5 % 23.7 % 23.9 % 24.1 %
Electrical Data at NOCT
Maximum Power (Pmax)
480 Wp 483 Wp 487 Wp 491 Wp 495 Wp
Voltage at Maximum Power (Vmpp)
41.96 V 42.06 V 42.15 V 42.25 V 42.35 V
Current at Maximum Power (Impp)
11.44 A 11.5 A 11.56 A 11.63 A 11.69 A
Open Circuit Voltage (Voc)
50.84 V 50.94 V 51.04 V 51.13 V 51.23 V
Short Circuit Current (Isc)
12.02 A 12.09 A 12.15 A 12.22 A 12.28 A
Temperature 45±2 °C

Operating Temperature Range -40 - 85 °C
Temperature Coefficient of Pmax -0.26 %/°C
Temperature Coefficient of Voc -0.2 %/°C
Temperature Coefficient of Isc 0.05 %/°C

Maximum System Voltage 1500 V
Series Fuse Rating 25 A

Panel Dimension (H/W/D)  2382x1134x30 mm
Weight 28.5 kg
Cell Number 144
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 400 mm
