Longi Solar

LONGI HiMO X10 Guardian AntiDust 650W 144 Cells Solar Panel - LR7-72HVHF-650M

LONGI HiMO X10 Guardian AntiDust 650W 144 Cells Solar Panel - LR7-72HVHF-650M

$268.00 AUD
$285.00 AUD $268.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 15 Years Product Warranty / 30 Years Performance Warranty

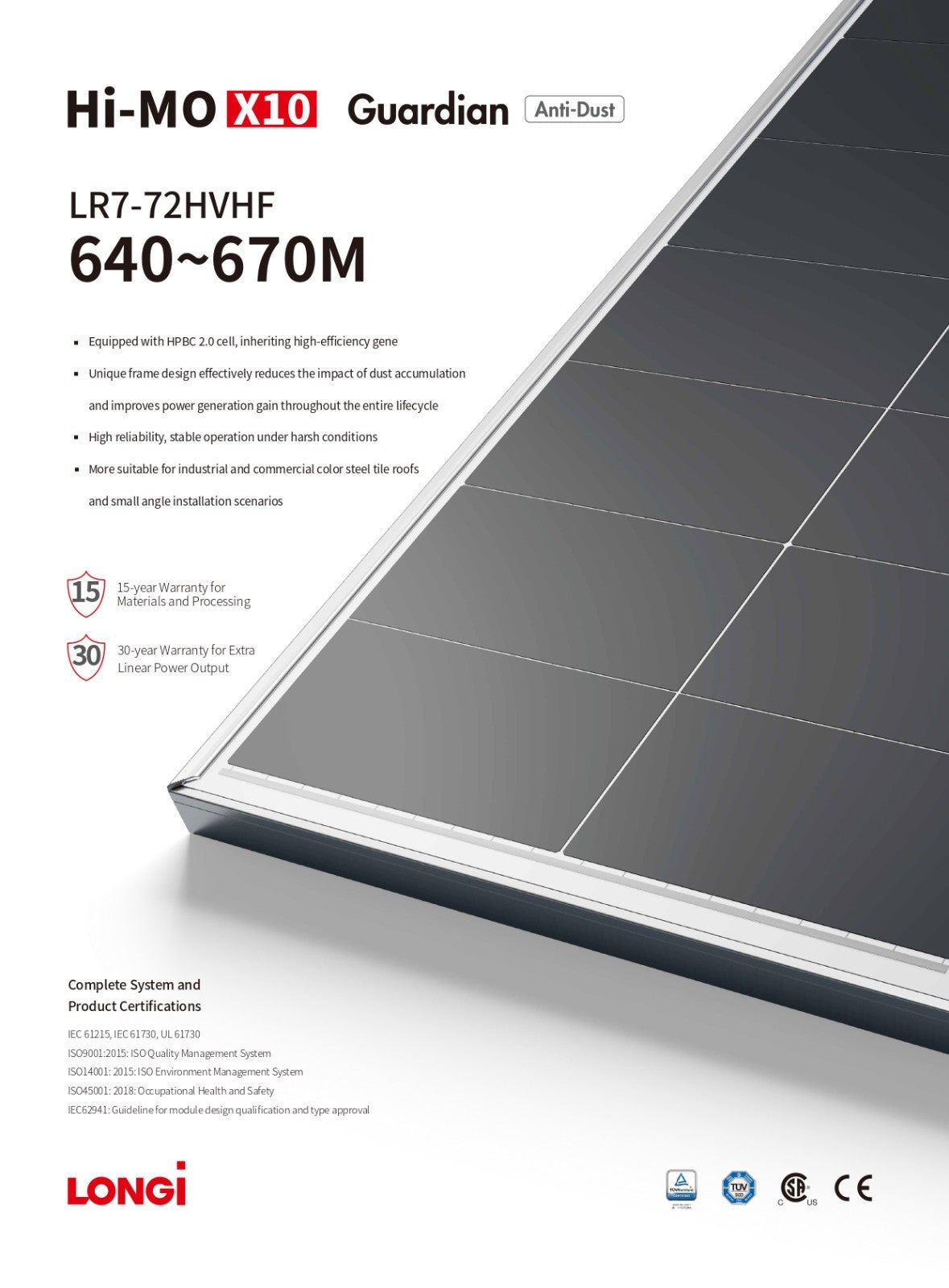

  • Equipped with HPBC 2.0 cell, inheriting high-efficiency gene
  • Unique frame design effectively reduces the impact of dust accumulation and improves power generation gain throughout the entire lifecycle
  • High reliability, stable operation under harsh conditions
  • More suitable for industrial and commercial color steel tile roofs and small angle installation scenarios

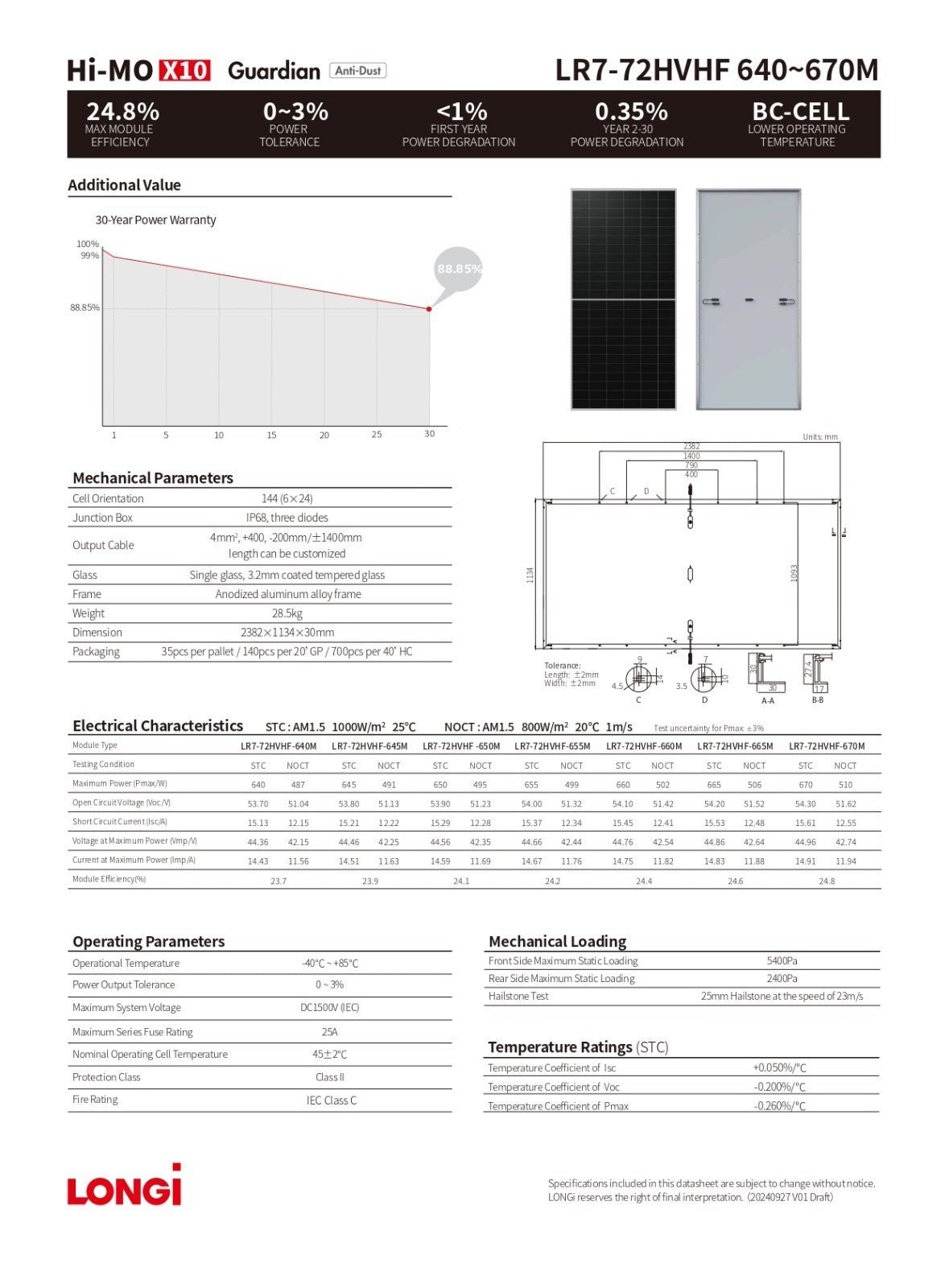

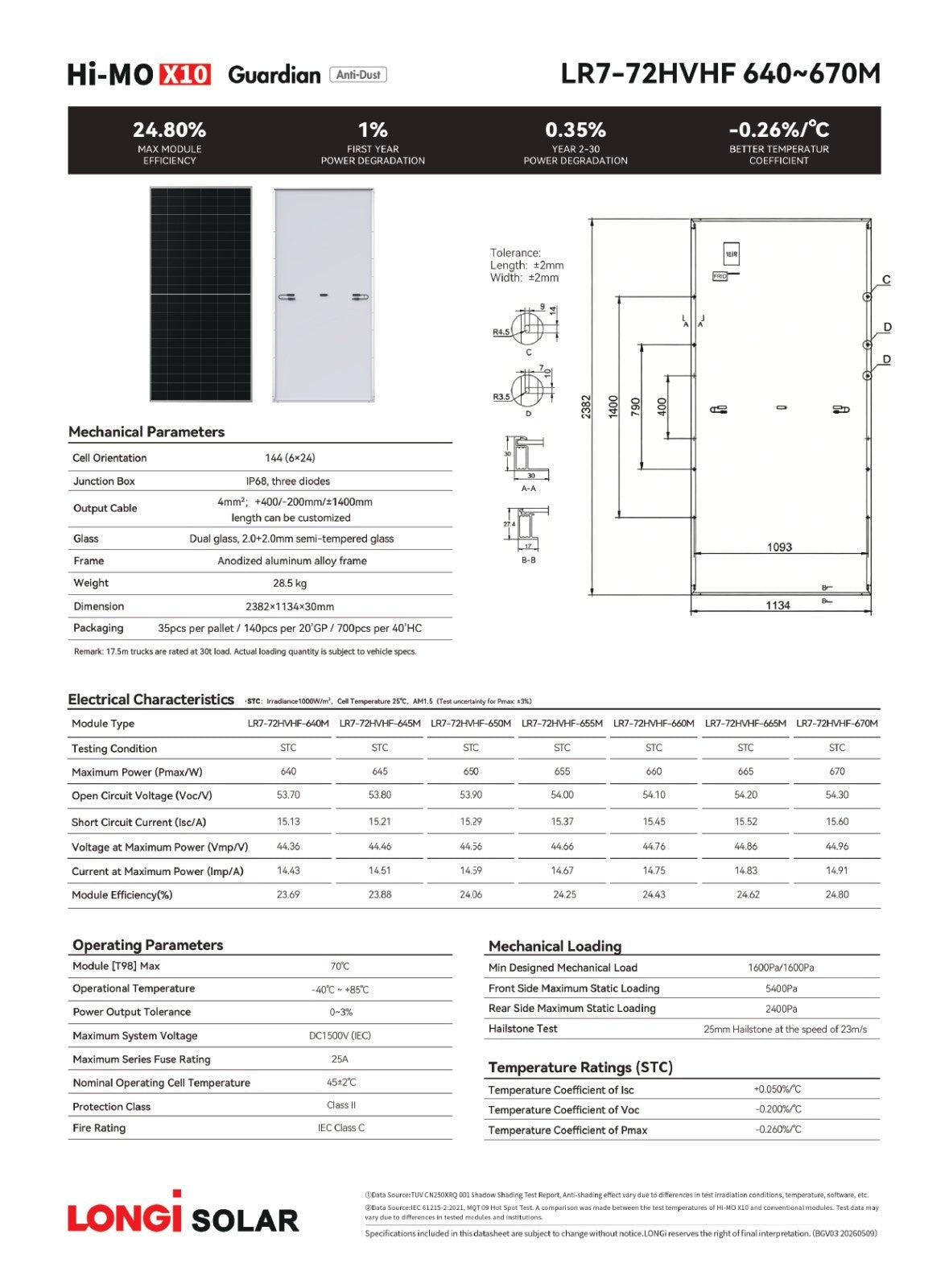

Product Characteristics

Type Monocrystalline
Model No.
LR7-72HVHF-640M LR7-72HVHF-645M LR7-72HVHF-650M LR7-72HVHF-655M LR7-72HVHF-660M LR7-72HVHF-665M LR7-72HVHF-670M

Product Warranty 15 Years
Power Tolerance  0 ~ +3 %
Electrical Data at STC
Maximum Power (Pmax)
640 Wp 645 Wp 650 Wp 655 Wp 660 Wp 665 Wp 670 Wp
Voltage at Maximum Power (Vmpp)
44.36 V 44.46 V 44.56 V 44.66 V 44.76 V 44.86 V 44.96 V
Current at Maximum Power (Impp)
14.43 A 14.51 A 14.59 A 14.67 A 14.75 A 14.83 A 14.91 A
Open Circuit Voltage (Voc)
53.7 V 53.8 V 53.9 V 54 V 54.1 V 54.2 V 54.3 V
Short Circuit Current (Isc)
15.13 A 15.21 A 15.29 A 15.37 A 15.45 A 15.52 A 15.69 A
Panel Efficiency
23.7 % 23.9 % 24.1 % 24.2 % 24.4 % 24.6 % 24.8 %
Electrical Data at NOCT
Temperature 45±2 °C

Operating Temperature Range -40 - 85 °C
Temperature Coefficient of Pmax -0.26 %/°C
Temperature Coefficient of Voc -0.2 %/°C
Temperature Coefficient of Isc 0.05 %/°C

Maximum System Voltage 1500 V
Series Fuse Rating 25 A

Panel Dimension (H/W/D)  2382x1134x30 mm
Weight 28.5 kg
Cell Number 144
Glass Type Tempered
Glass Thickness 2 mm
Frame Type Anodized Aluminium
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
