Longi Solar

LONGI HiMO X10 Scientist 540W 120 Cells Solar Panel - LR7-60HVH-540M

LONGI HiMO X10 Scientist 540W 120 Cells Solar Panel - LR7-60HVH-540M

$209.00 AUD
$223.00 AUD $209.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.


Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 15 Years Product Warranty / 30 Years Performance Warranty

  • More flexible installation methods suitable for short frame clamps mounting with high mechanical loading
  • High efficiency with better energy generation performance
  • N-type TaiRay wafer & HPBC 2.0 innovative technology enhances high product reliability

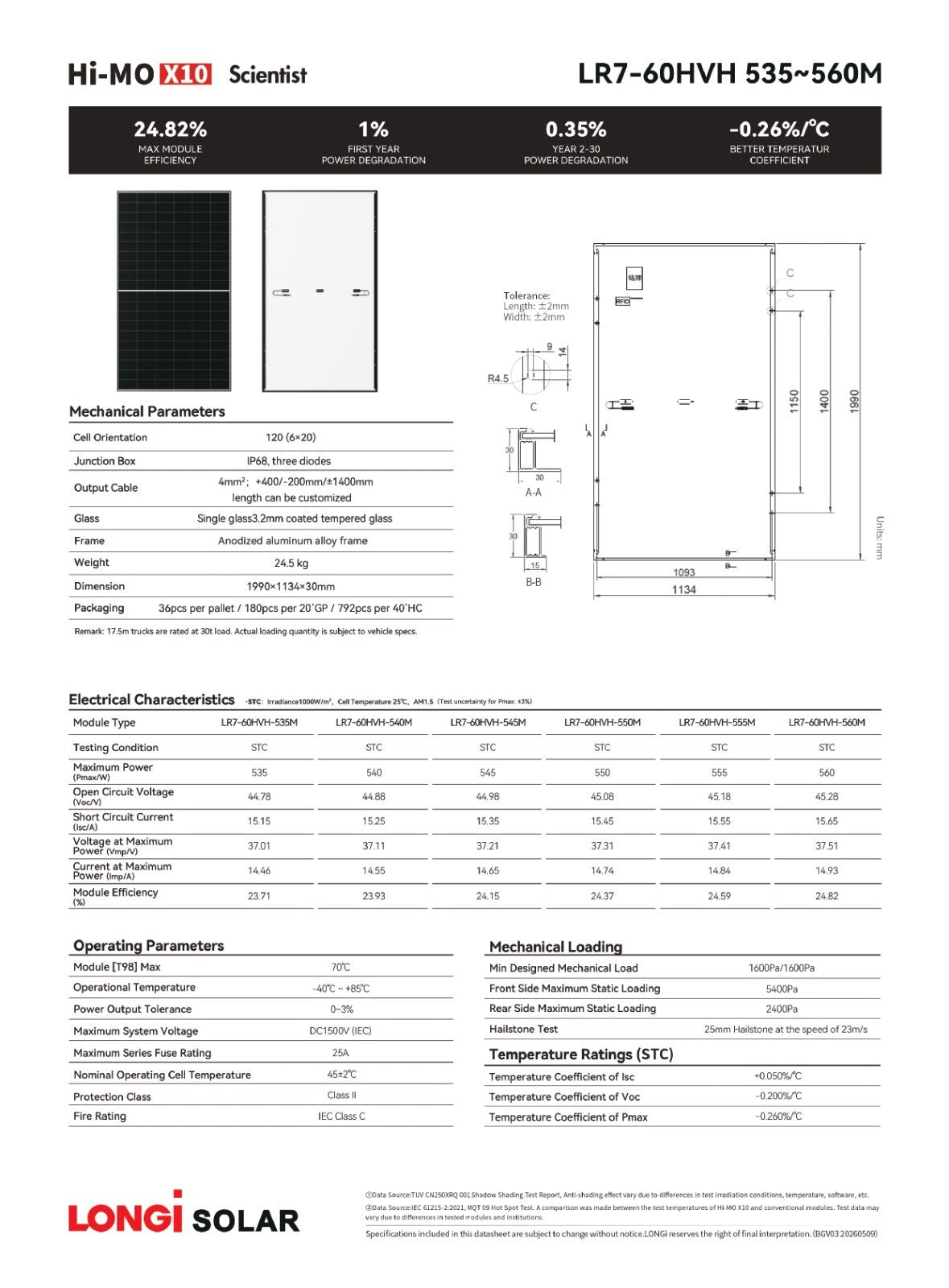

Product Characteristics


Type Monocrystalline
Model No.
LR7-60HVH-535M LR7-60HVH-540M LR7-60HVH-545M LR7-60HVH-550M LR7-60HVH-555M LR7-60HVH-560M

Product Warranty 15 Years
Power Tolerance  0 ~ +3 %
Electrical Data at STC
Maximum Power (Pmax)
535 Wp 540 Wp 545 Wp 550 Wp 555 Wp 560 Wp
Voltage at Maximum Power (Vmpp)
37.01 V 37.11 V 37.21 V 37.31 V 37.41 V 37.51 V
Current at Maximum Power (Impp)
14.46 A 14.55 A 14.65 A 14.74 A 14.84 A 14.93 A
Open Circuit Voltage (Voc)
44.78 V 44.88 V 44.98 V 45.08 V 45.18 V 45.28 V
Short Circuit Current (Isc)
15.15 A 15.25 A 15.35 A 15.45 A 15.55 A 15.65 A
Panel Efficiency
23.71 % 23.93 % 24.15 % 24.37 % 24.59 % 24.82 %
Electrical Data at NOCT
Temperature 45±2 °C

Operating Temperature Range -40 - 85 °C
Temperature Coefficient of Pmax -0.26 %/°C
Temperature Coefficient of Voc -0.2 %/°C
Temperature Coefficient of Isc 0.05 %/°C

Maximum System Voltage 1500 V
Series Fuse Rating 25 A

Panel Dimension (H/W/D)  1990x1134x30 mm
Weight 24.5 kg
Cell Number 120
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Diodes 3
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
