Longi Solar

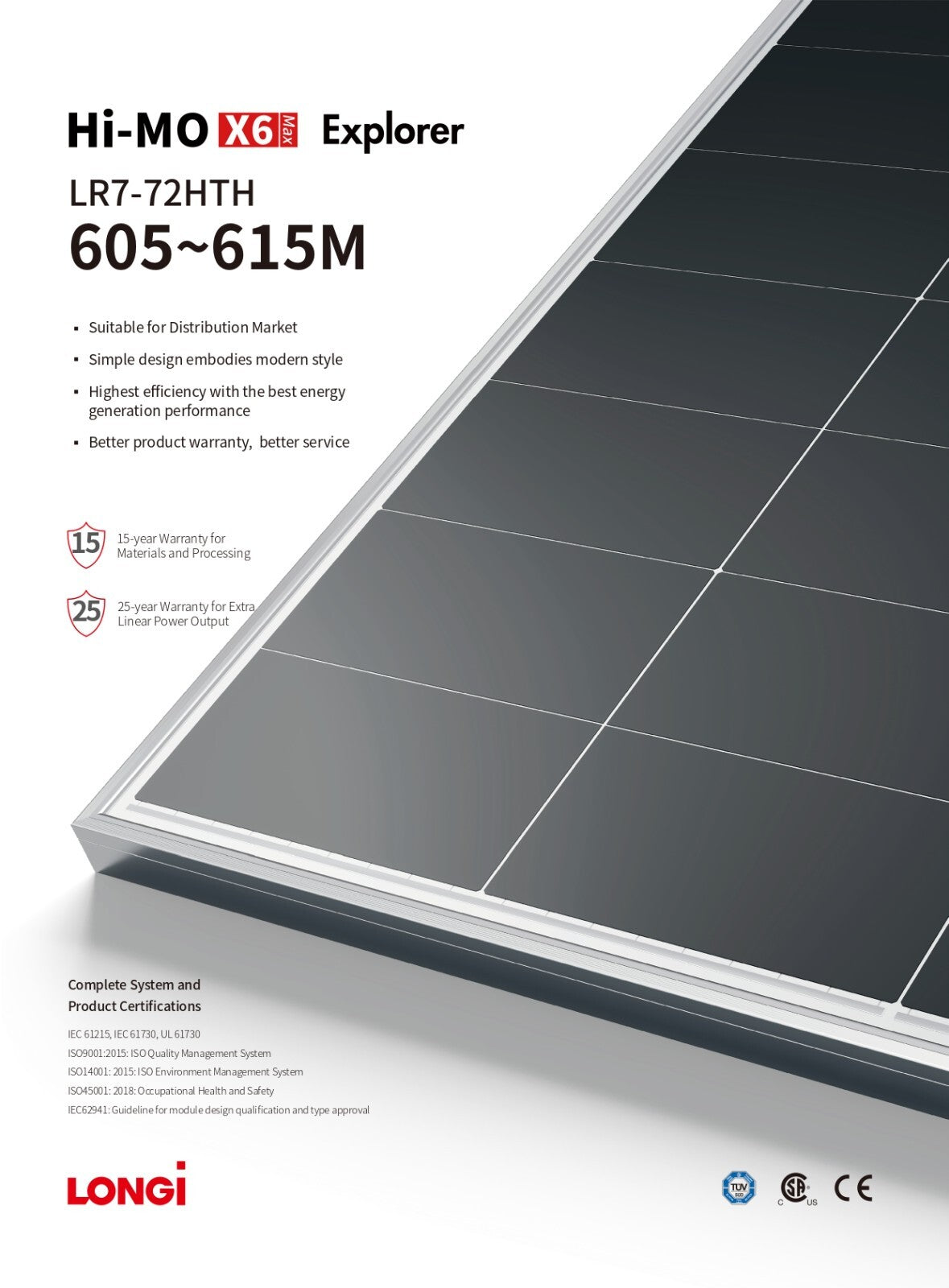

LONGI HIMO X6 Max Explorer 615W 144 Cell Solar Panel - LR7-72HTH-615M

LONGI HIMO X6 Max Explorer 615W 144 Cell Solar Panel - LR7-72HTH-615M

$219.00 AUD
$233.00 AUD $219.00 AUD
Sale Sold out

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Adelaide,Tasmania, Melbourne and New Zealand.

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Under the mission of "To make the best of solar energy to build a green world" with a brand positioning of "The most trusted, reliable solar company that blazes the trail for green technology,"LONGi is developing solutions for large-scale power plants, for different industries and households with its innovation-focused development. Eventually, we will also supply "Green Power + Green Hydrogen" solutions for global zero-carbon development.

* 15 Years Product Warranty / 25 Years Performance Warranty

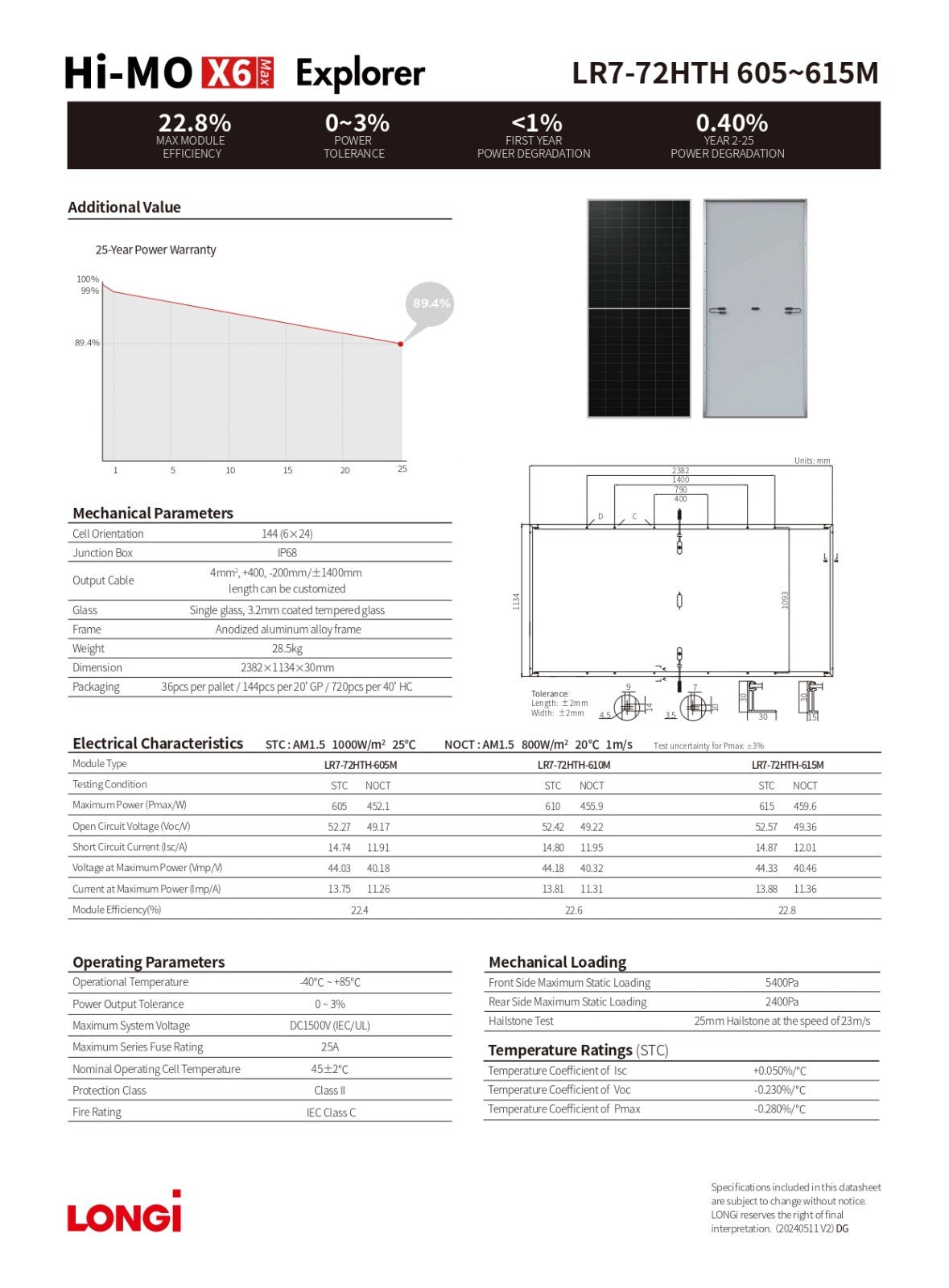

Product Characteristics

Type Monocrystalline
Model No.
LR7-72HTH-605M LR7-72HTH-610M LR7-72HTH-615M
Warranty
Product Warranty 15 Years
Power Warranty 25 Years of 89.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)
605 Wp 610 Wp 615 Wp
Voltage at Maximum Power (Vmpp)
44.03 V 44.18 V 44.33 V
Current at Maximum Power (Impp)
13.75 A 13.81 A 13.88 A
Open Circuit Voltage (Voc)
52.27 V 52.42 V 52.57 V
Short Circuit Current (Isc)
14.74 A 14.8 A 14.87 A
Panel Efficiency
22.4 % 22.6 % 22.8 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
452.1 Wp 455.9 Wp 459.6 Wp
Voltage at Maximum Power (Vmpp)
40.18 V 40.32 V 40.46 V
Current at Maximum Power (Impp)
11.26 A 11.31 A 11.36 A
Open Circuit Voltage (Voc)
49.17 V 49.22 V 49.36 V
Short Circuit Current (Isc)
11.91 A 11.95 A 12.01 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.28 %/°C
Temperature Coefficient of Voc -0.23 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D)  2382x1134x30 mm
Weight 28.5 kg
Cell Number 144
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 400 mm
