SOLAX

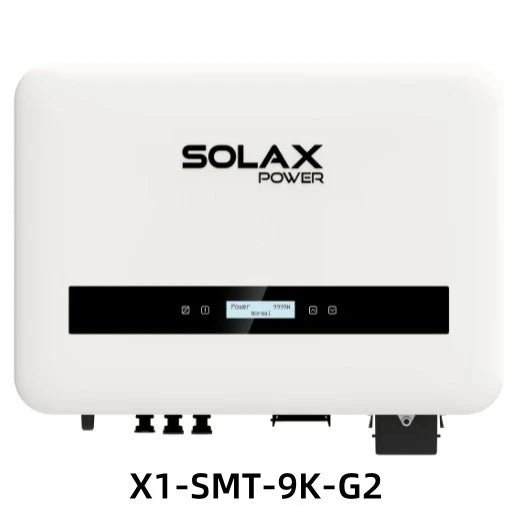

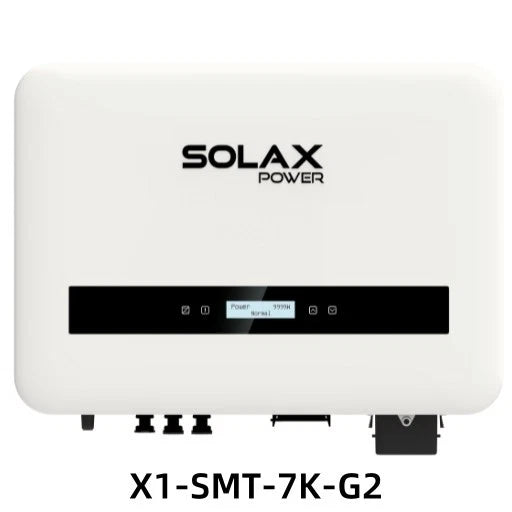

SOLAX SINGLE PHASE X1-SMART G2 INVERTER 5Kw-10Kw

SOLAX SINGLE PHASE X1-SMART G2 INVERTER 5Kw-10Kw

$1,188.00 AUD
$1,188.00 AUD
Sale Sold out
Style

X1-SMART G2

SINGLE-PHASE
ON-GRID INVERTER
5~10kW

Features

Advanced performance
  • 3 MPP trackers for multi-orientation installation
  • Max. PV input current 20A compatible with advanced high-power panels
  • 200% PV oversizing, and 110% AC overloading
User-friendly O&M
  • Super convenient and quick plug-play communication terminal
  • Aluminum AC wires supported
  • 10s data refresh interval with new Cloud interface
  • 24h consumption monitoring
Adaptable and Multifunctional
  • Multiple units in parallel for larger system
  • Global MPP scan to yield more
  • Fast I-V curve scan and report for earlier panel issue diagnosis
  • Home EV Charger and Heat Pump Solution adaptable
Robust safety protection
  • Optional external RSD (Rapid Shut Down) and integrated DC AFCI protection (Optional)
  • DC/AC both sides SPD2 protection (Optional modules to meet certification IEC/EN61643)
  • Support 2030.5 and flexible control
