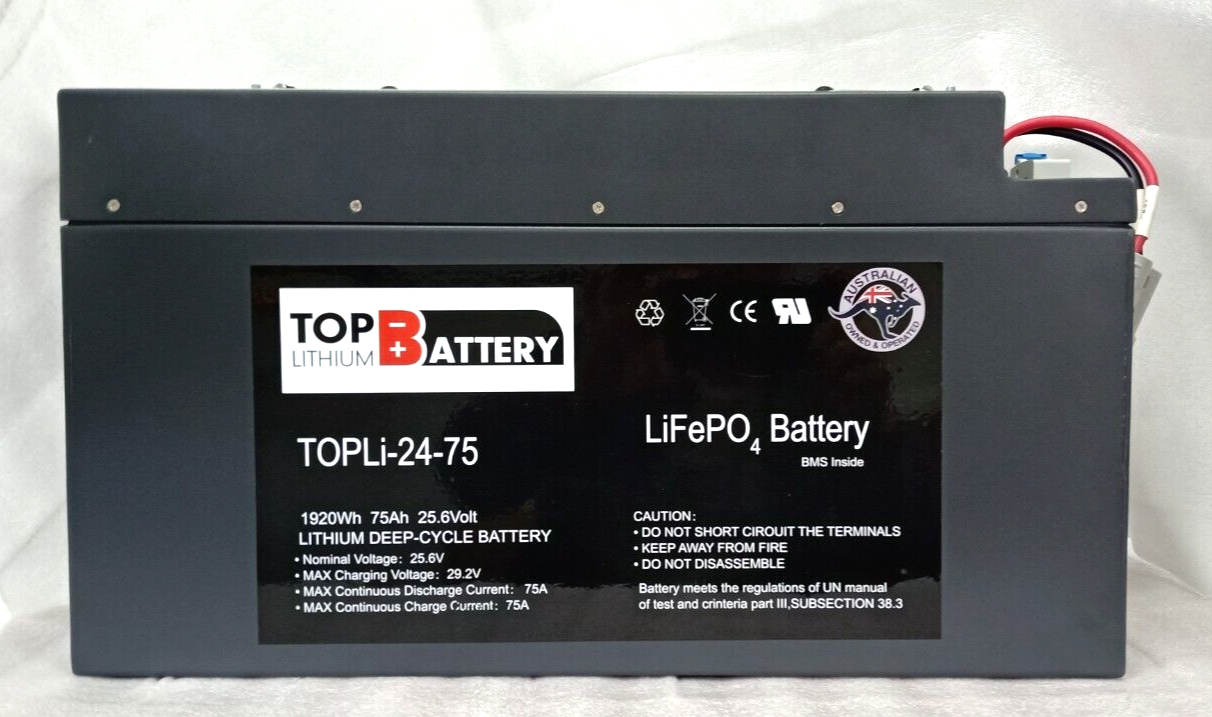

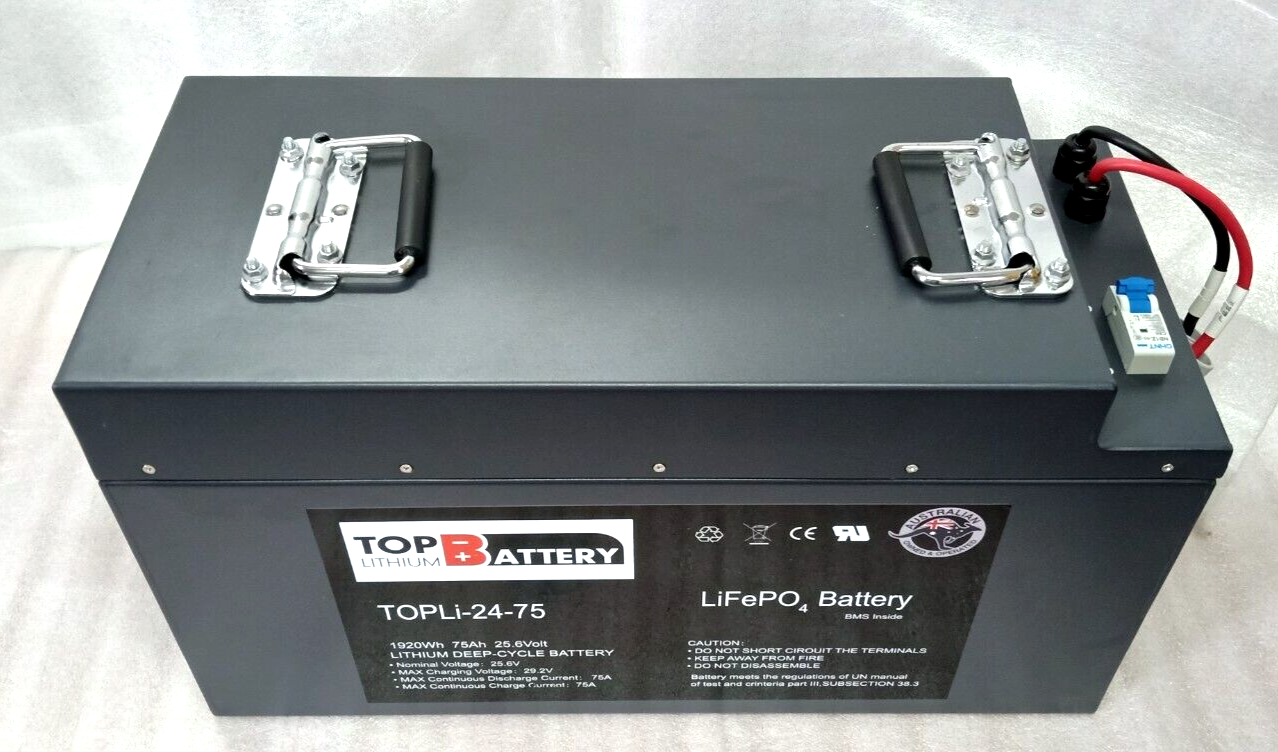

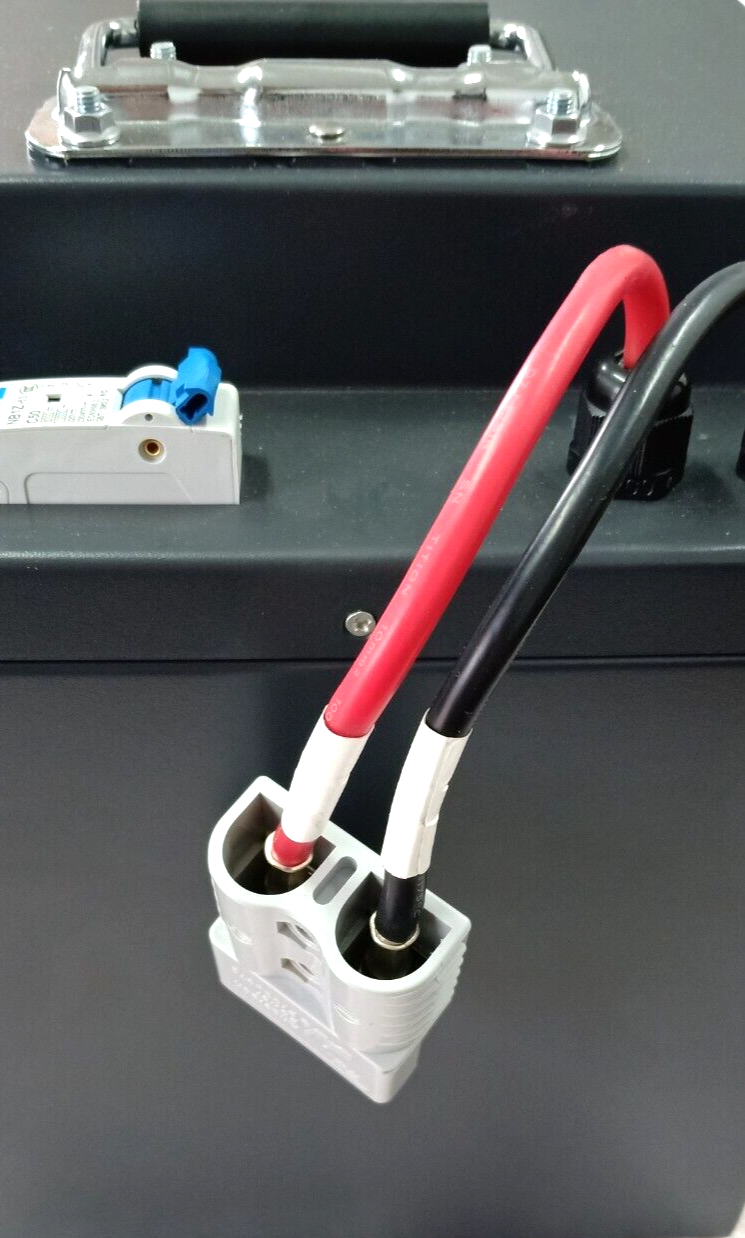

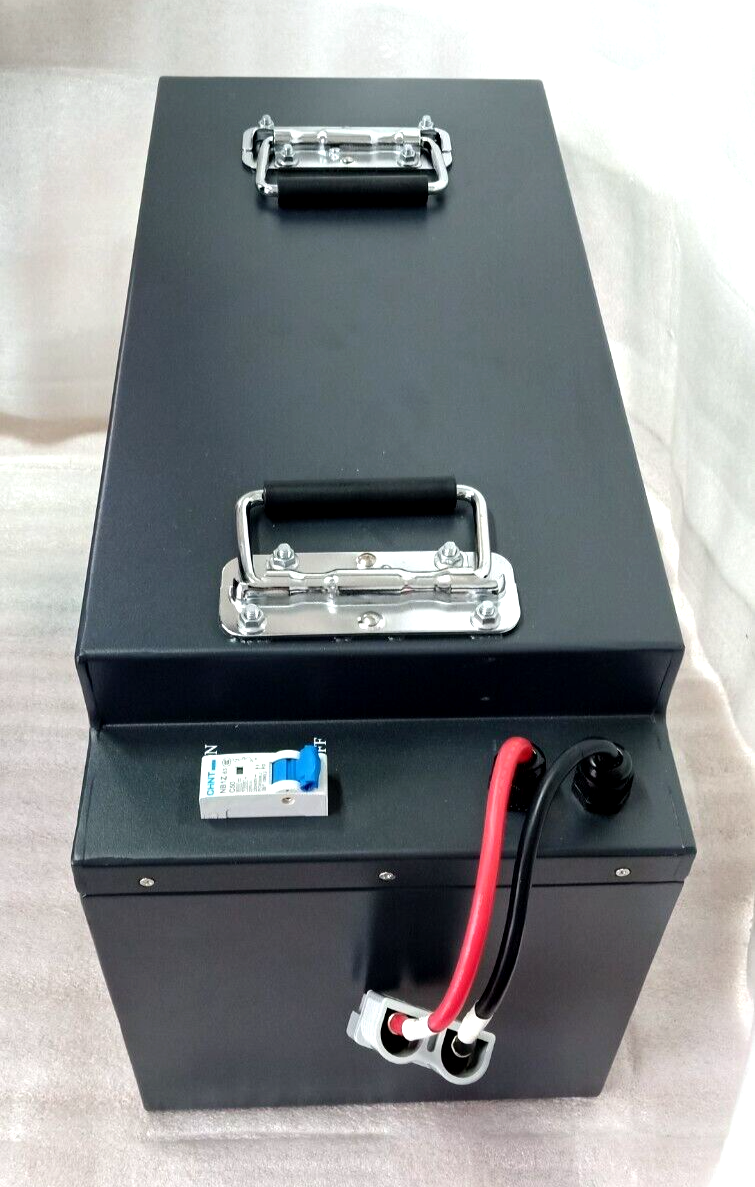

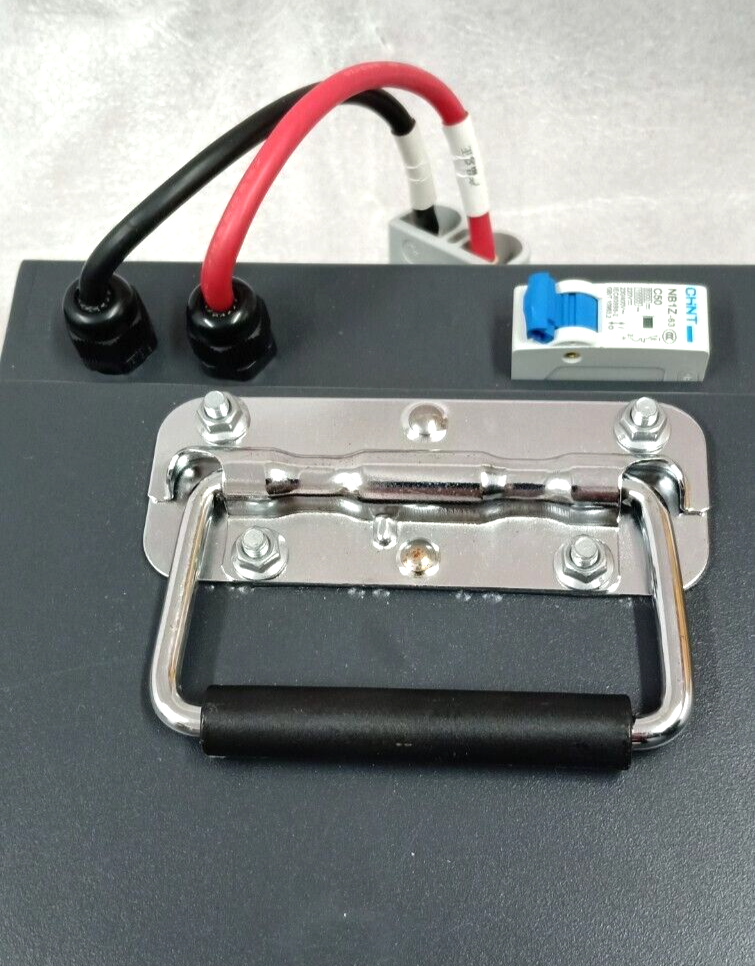

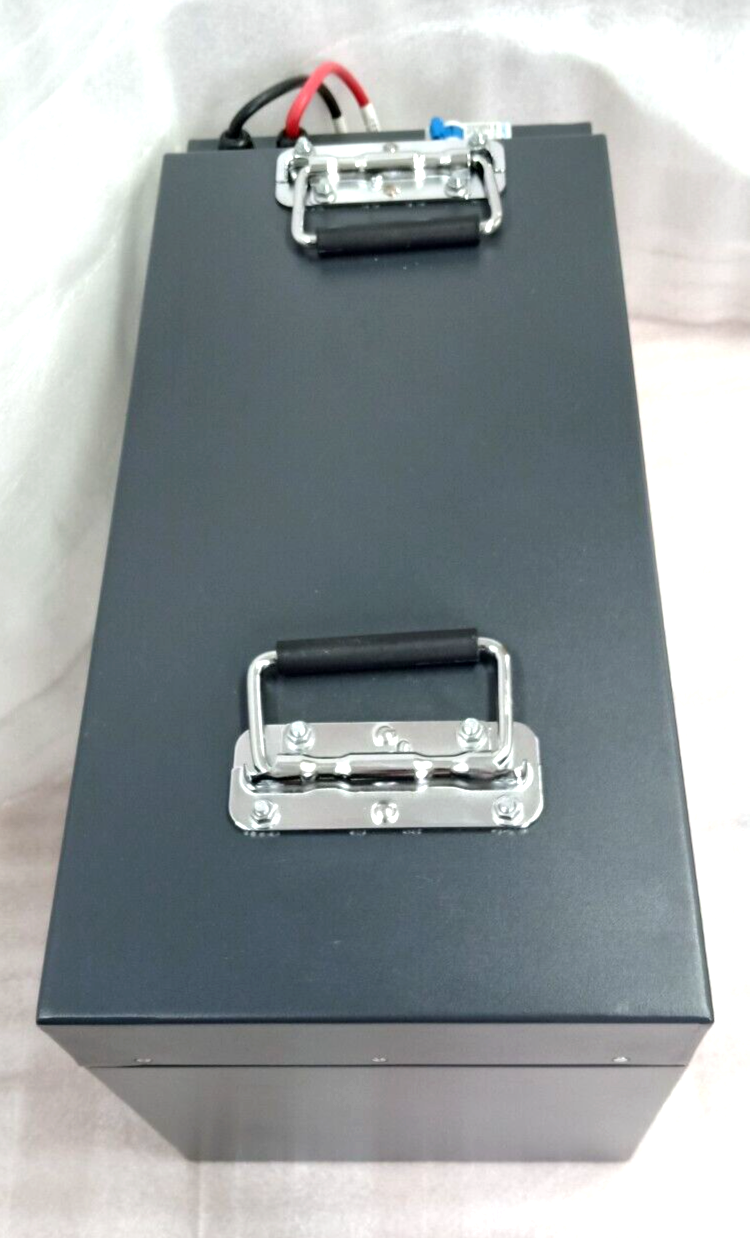

Top Lithium Battery 24V 75Ah 1.92kWh Lithium Battery Energy Storage 120A Anderson Connnector

Freight - Please contact the seller for details

TOPLi-24-75 is 24V75Ah lithium battery module. It is designed for home and commercial solar energy storage as well as power back up for the critical equipment during the grid power blackout.
TOPLi-24-75 uses Lithium Iron Phosphate (LFP) chemistry which is recognized as one of the safest Lithium chemistries currently in use.
The simplicity in modulating the battery makes it possible to create small or large energy storage systems. By adding additional battery modules, the initial energy storage installation can be expanded to a battery group of 4 modules in parallel connection.

Product Feature

 The expected design life is up to 5+ years;

 2 years warranty;

 Greater depth of discharge (DOD 90%) compared to Lead-Acid/AGM/GEL battery(DOD 50%);

 Single battery module capacity of 1.92kWh;

 Working temperatures of between -20°C to 55°C (Charging 0~50°C; discharging -20~55°C);

 More stable and safer LFP internal battery cells, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO;

 Battery management system (BMS) automatically manages charge/discharge state and balance   current/voltage of each cell. BMS enables protection functions including over-discharge, over-   charge,over-current protection and high/low temperature protection;

 Expansion up to 4 modules  that makes the total capacity to 7.68kWh in parallel connection;

 Natural cooling with metal case allows the battery to achieve the highest energy efficiency and no fan noise.

 Manufacturer Warranty: 24 months

• Capacity: 25.6V75Ah  1920W
• Dimension: L490 x W220 x H270mm
• Weight: 32kg
• Battery Cells Connection: 1P8S
• Nominal Input Voltage: 29.2V
• Input Voltage Range: 29.2V<U<33V
• Input Current: <25A
• Input Power: <640W
• Nominal Output Voltage: 25.6V
• Output Voltage Range:22.4V<U<29.2V
• Output Current:<50A
• Output Power:<1280W
• Overload, overcharge, overdischarge, overtemperature, overcurrent, short circuit protection
• Battery Cells Type: prismatic LiFePO4 cell
• Operating Temperature: Charge 0-55℃；Discharge -10-55℃
• Relative Humidity: 90%
