Victron BlueSolar MPPT 100/50 SCC020050200
Victron BlueSolar MPPT 100/50 SCC020050200
Regular price
$219.00 AUD
Regular price
Sale price
$219.00 AUD
Unit price
per
Couldn't load pickup availability

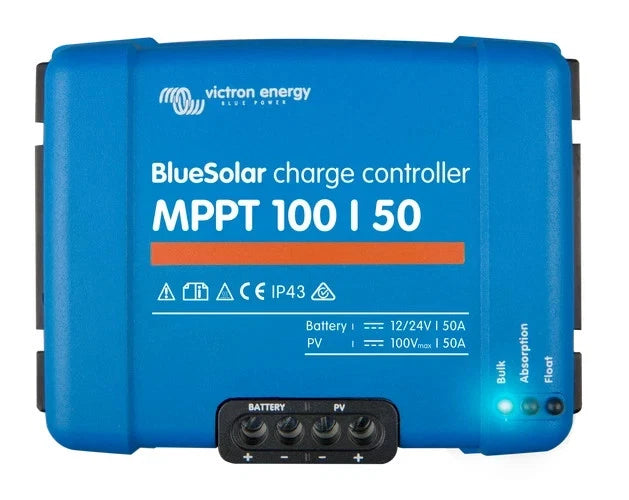

Victron Energy BlueSolar MPPT 100/50 Charge Controller (SCC020050200)
Genuine Victron Energy Product | Maximum Power Point Tracking Solar Charge Controller | 12V / 24V Battery Systems
Boost your solar charging efficiency with the genuine Victron BlueSolar MPPT 100/50 (Part Number: SCC020050200). Designed for professional off-grid, caravan, marine, and industrial applications, this advanced solar charge controller uses ultra-fast Maximum Power Point Tracking (MPPT) technology to harvest up to 30% more energy compared with conventional PWM controllers.
Key Features
- Ultra-fast MPPT technology for maximum solar harvest
- 12V and 24V battery systems (automatic voltage detection)
- Maximum PV Open Circuit Voltage: 100V
- Maximum Charge Current: 50A
- Suitable for LiFePO4, AGM, GEL, and Lead Acid batteries
- Integrated 2A programmable load output
- Fully programmable charging parameters
- Electronic protection against overheating and reverse polarity
- Industrial-grade aluminium housing
- Designed and engineered by Victron Energy (Netherlands)
Technical Specifications
| Specification | Details |
|---|---|
| Model | BlueSolar MPPT 100/50 |
| Part Number | SCC020050200 |
| Battery Voltage | 12V / 24V Auto Select |
| Maximum PV Voltage (Voc) | 100V |
| Maximum Charge Current | 50A |
| Maximum PV Power @ 12V | 700W |
| Maximum PV Power @ 24V | 1400W |
| Load Output | 2A |
| Battery Types | Lithium, AGM, GEL, Flooded |
| Efficiency | Up to 98% |
| Cooling | Natural convection |
| Protection Rating | IP43 (electronic section) |
| Communication | VE.Direct |
| Weight | Approx. 1.3 kg |
| Dimensions | 130 x 186 x 70 mm |
Ideal Applications
- Off-grid solar systems
- Caravans and RVs
- 4WD dual battery setups
- Marine and boating
- Remote telecommunications
- Backup power systems
- Agricultural and industrial installations
Why Choose Victron?
Victron Energy is globally recognized as one of the most trusted brands in power conversion and energy storage. Their products are renowned for:
- Exceptional reliability
- Industry-leading efficiency
- Advanced battery management
- Worldwide technical support
- Long service life
