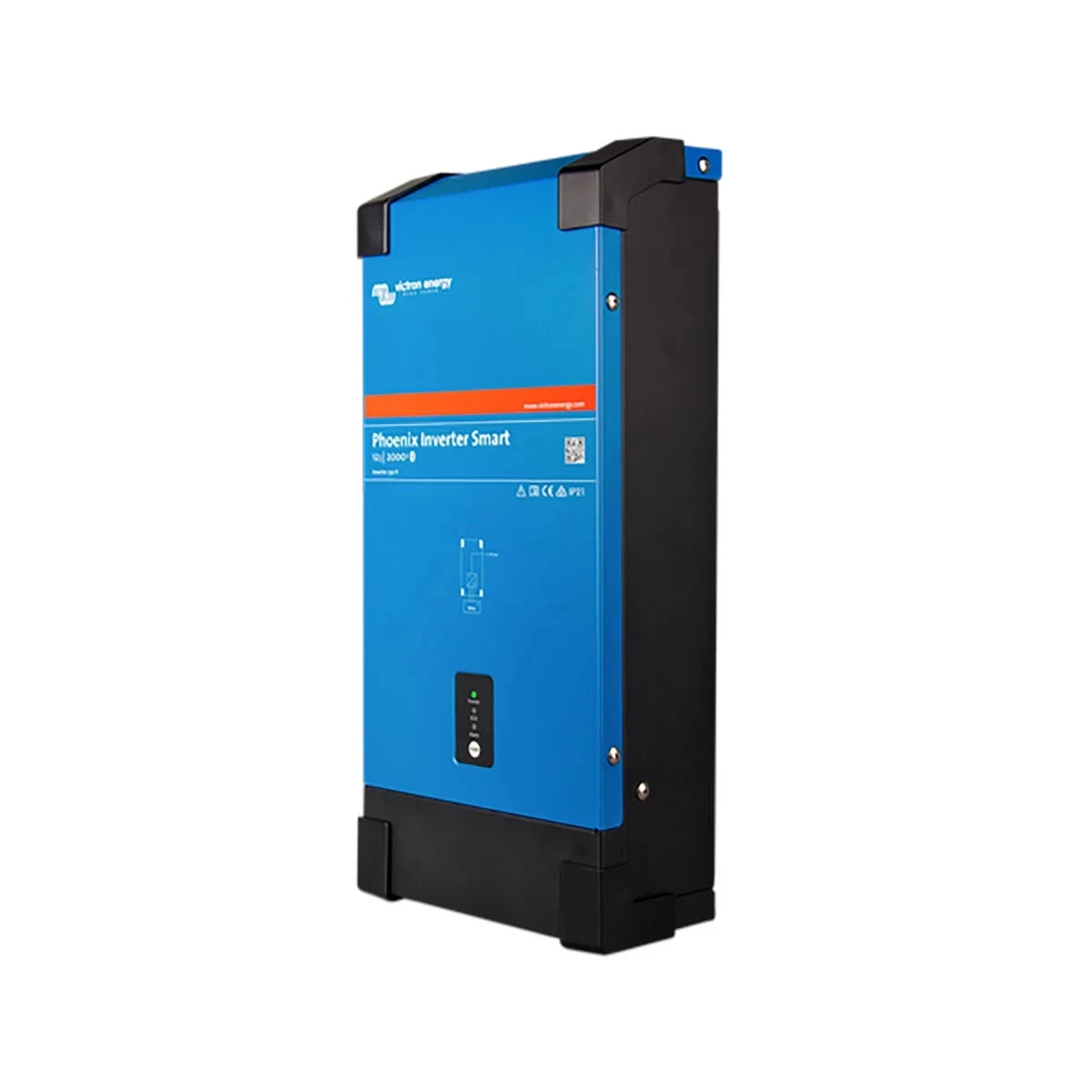

Victron Phoenix Inverter 48/3000 230V Smart - PIN482300000

Victron Phoenix Inverter Smart 12/3000 — Inverter 12/3000 230 V Smart (Model: PIN482300000)

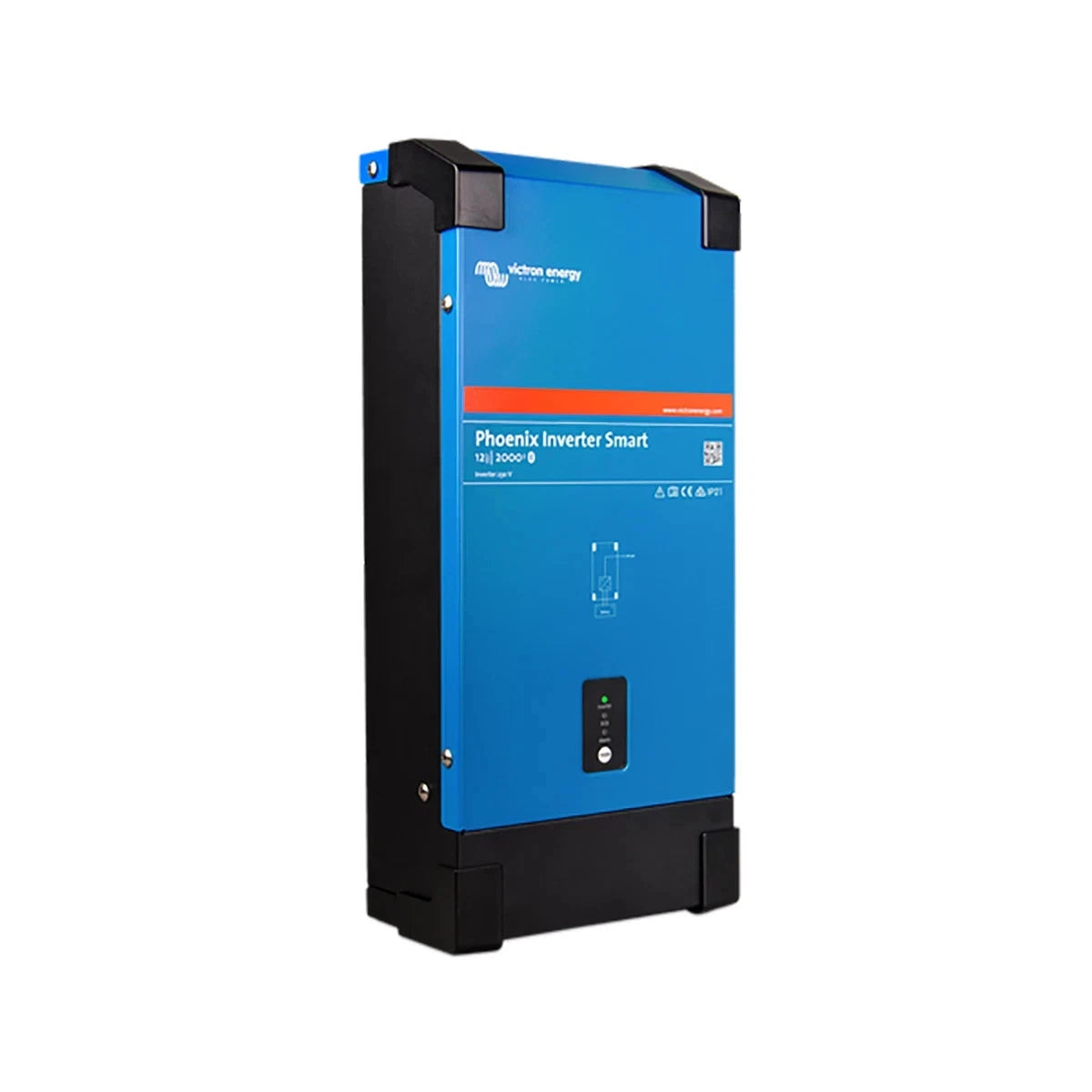

The Victron Phoenix Inverter Smart 12/3000 is a high-performance pure sine-wave power inverter designed to convert 12 V DC battery power into stable 230 V AC mains-equivalent electricity. Built on Victron’s trusted Phoenix platform, this rugged unit is ideal for off-grid solar systems, RVs, caravans, boats, remote cabins, emergency backup power, and mobile applications where clean, reliable AC power is needed.

🔌 Key Features

• Pure sine-wave output delivers clean 230 V AC power compatible with sensitive electronics, tools, appliances, and LED lighting.

• 3000 VA rated capacity (approximately 2400 W continuous), with high peak surge power (~6000 W) to start motors and high-inrush devices.

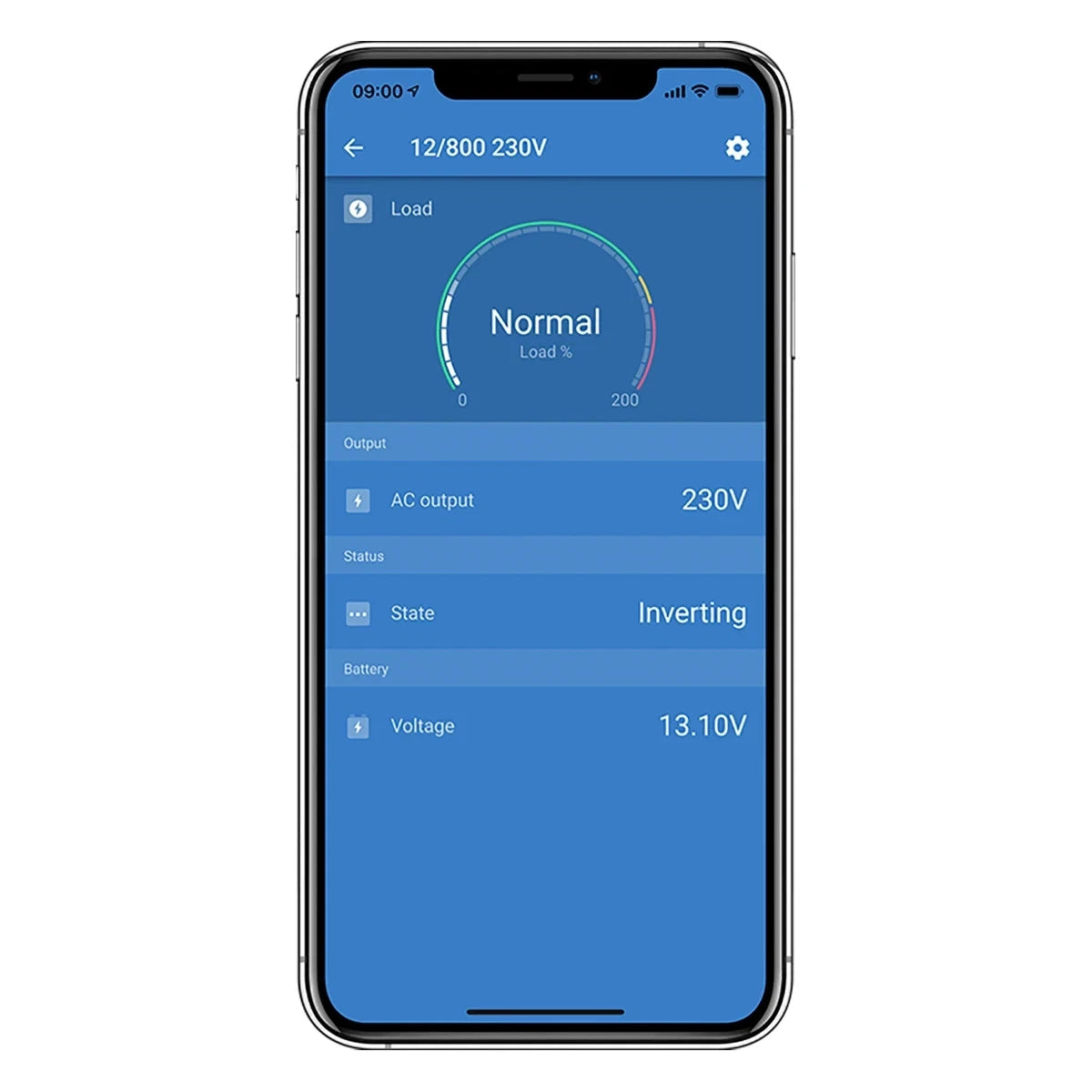

• Bluetooth connectivity built-in — monitor performance and configure settings (voltage, frequency, ECO mode, alarms) easily using the VictronConnect app on your smartphone or tablet.

• Adjustable output voltage (210–245 V) and frequency (50 Hz/60 Hz) to suit your regional and appliance requirements.

• ECO mode for improved efficiency — the inverter automatically enters low-consumption standby when loads are light.

• Built-in protections including low battery alarm/cut-off, overload, short-circuit, overheating and dynamic cut-off (load-dependent) to protect both the inverter and connected equipment.

• VE.Direct port & programmable relay for advanced monitoring, integration with system controllers, and automation.

• Remote on/off capability for convenience in installations where the inverter is hard to access.

⚡ Typical Applications

• Powering household and camping appliances (fridges, laptops, pumps, lighting) from a 12 V battery bank.

• Backup power for sudden outages.

• Integration into solar energy systems for AC output without a mains grid.

• Marine and RV electrical systems requiring robust 230 V AC service.

⚙️ Performance Highlights

• Continuous output: ~2400 W @ 25 °C.

• Peak surge: ~6000 W for starting loads.

• Efficiency: ~92-93 % typical.

• Operating range: ~9.3 – 17 V DC.

• Weight & size: ~19 kg, compact metal casing with accessible terminals.

Why Choose the Phoenix Smart 12/3000?

The Phoenix Smart series blends professional-grade sine-wave performance with modern connectivity — giving you not just reliable 230 V power, but also remote monitoring, smart configuration, and advanced protection features rarely found in standalone inverters of this size. Whether you’re outfitting a solar-powered home, a caravan, or a remote off-grid project, this inverter provides clean, dependable AC power with smart features for greater control and efficiency.
