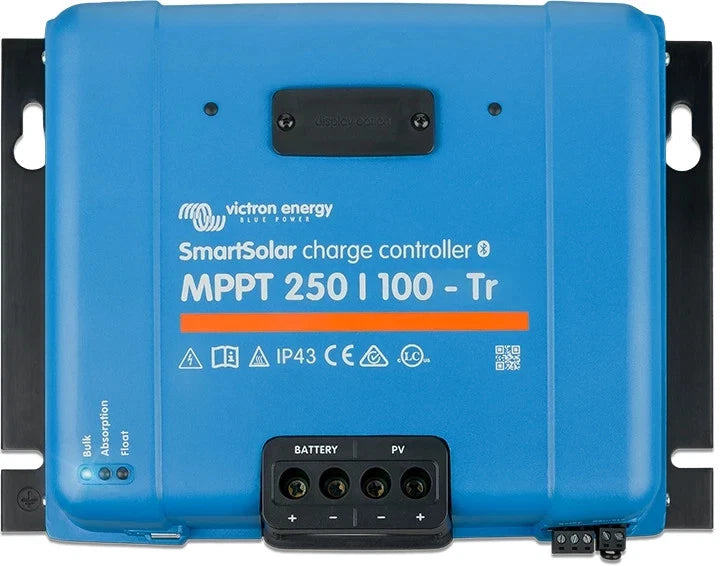

Victron SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller (SCC125110412)

Genuine Victron Energy | Advanced MPPT Solar Charging | Bluetooth & VE.Can

Maximise your solar energy production with the Victron SmartSolar MPPT 250/100-Tr VE.Can (SCC125110412). Designed for demanding off-grid, RV, marine, commercial and energy storage applications, this premium MPPT solar charge controller delivers ultra-fast Maximum Power Point Tracking technology, industry-leading efficiency, and seamless integration with the Victron ecosystem.

Built-in Bluetooth allows simple configuration and monitoring via the VictronConnect App, while VE.Can networking enables multiple charge controllers to work together in larger solar installations. The controller supports 12V, 24V, 36V and 48V battery systems, making it ideal for lithium (LiFePO₄), AGM, Gel and flooded lead-acid batteries.

Key Features

✔ Genuine Victron Energy Product

✔ Model: SmartSolar MPPT 250/100-Tr VE.Can

✔ Part Number: SCC125110412

✔ Maximum PV Open Circuit Voltage: 250V

✔ Maximum Charge Current: 100A

✔ Supports Battery Systems:

• 12V
• 24V
• 36V
• 48V (automatic detection except 36V manual selection)

✔ Ultra-fast MPPT technology for maximum solar harvest

✔ Built-in Bluetooth for wireless monitoring

✔ Compatible with VictronConnect App

✔ VE.Can communication for large multi-controller systems

✔ VE.Direct communication port

✔ Compatible with Victron GX devices and VRM Remote Monitoring

✔ Remote On/Off capability

✔ Programmable charging profiles

✔ High conversion efficiency (up to 98%)

✔ Passive cooling with no cooling fan for quiet and reliable operation

✔ Suitable for Lithium (LiFePO₄), AGM, Gel and Flooded batteries.

Typical Applications

• Off-Grid Solar Systems
• Residential Energy Storage
• Caravan & RV Solar Systems
• Camper Vans
• Marine Solar Installations
• Commercial Solar Systems
• Telecommunications
• Remote Power Systems
• Agricultural & Farm Installations
• Industrial Battery Charging

Technical Specifications

• Model: SCC125110412
• Battery Voltage: 12 / 24 / 36 / 48V
• Maximum Charge Current: 100A
• Maximum PV Open Circuit Voltage: 250V
• Maximum Recommended PV Power
  • 12V: 1450W
  • 24V: 2900W
  • 36V: 4350W
  • 48V: 5800W
• Communication: VE.Can + VE.Direct
• Wireless Connectivity: Built-in Bluetooth
• Cooling: Natural convection (fanless)
• Protection Rating: IP43
• Dimensions: 295 × 216 × 103 mm
• Weight: Approx. 4.5 kg
